Optical Cable CFOA-SM-AS-UT-COG – 02 to 12FO

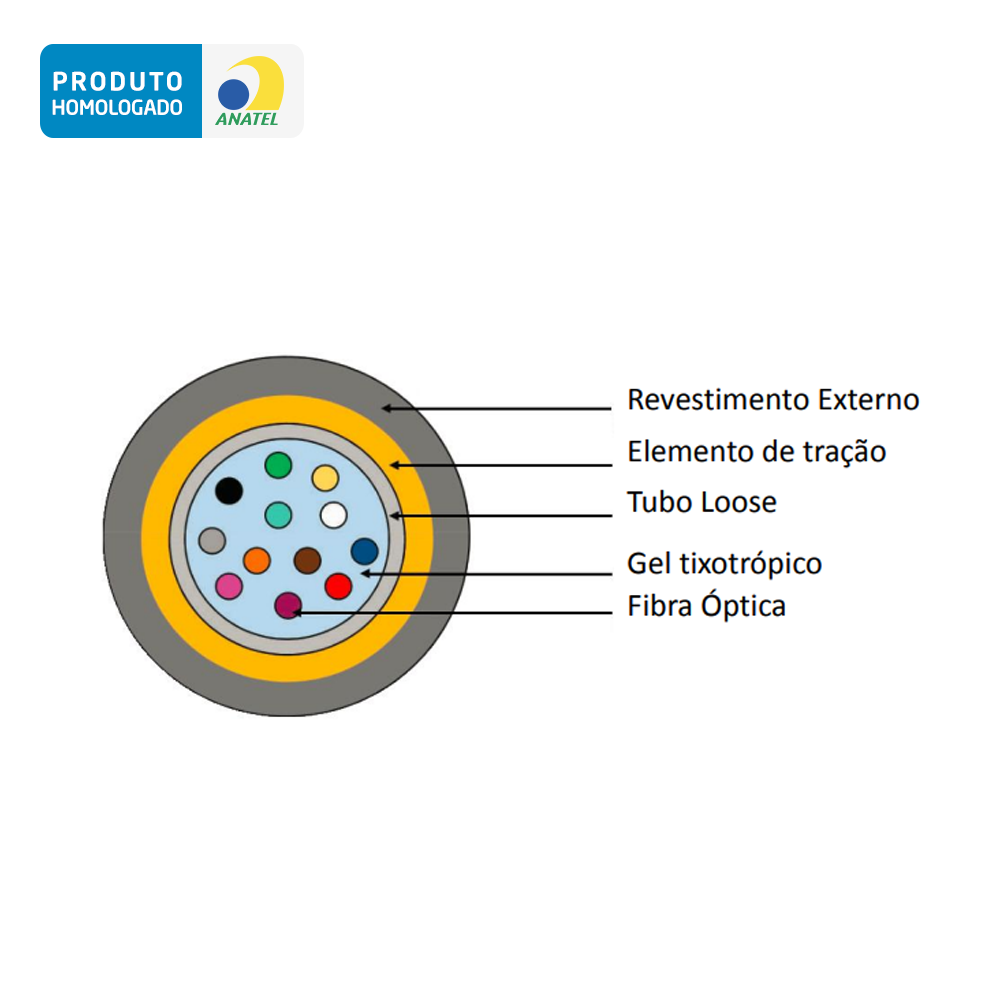

CFOAC AS-UT COG Self-Supporting Dielectric Optical Cable for outdoor applications in aerial installations with a maximum span of 80 meters. It has a Loose Tube – a single tube, thermoplastic material with up to twelve (12) optical fibers and thixotropic gel inside the tube to prevent moisture penetration. Traction Element – ​​bundles of synthetic wires placed around the loose tube that provide greater stability against tensile and compression stresses during and after installation. External Coating – black thermoplastic material with COG flame retardant grade, weather resistance and UV protection.

Main Features

– Single-mode optical fibers with acrylate coating
– Approved by Anatel
