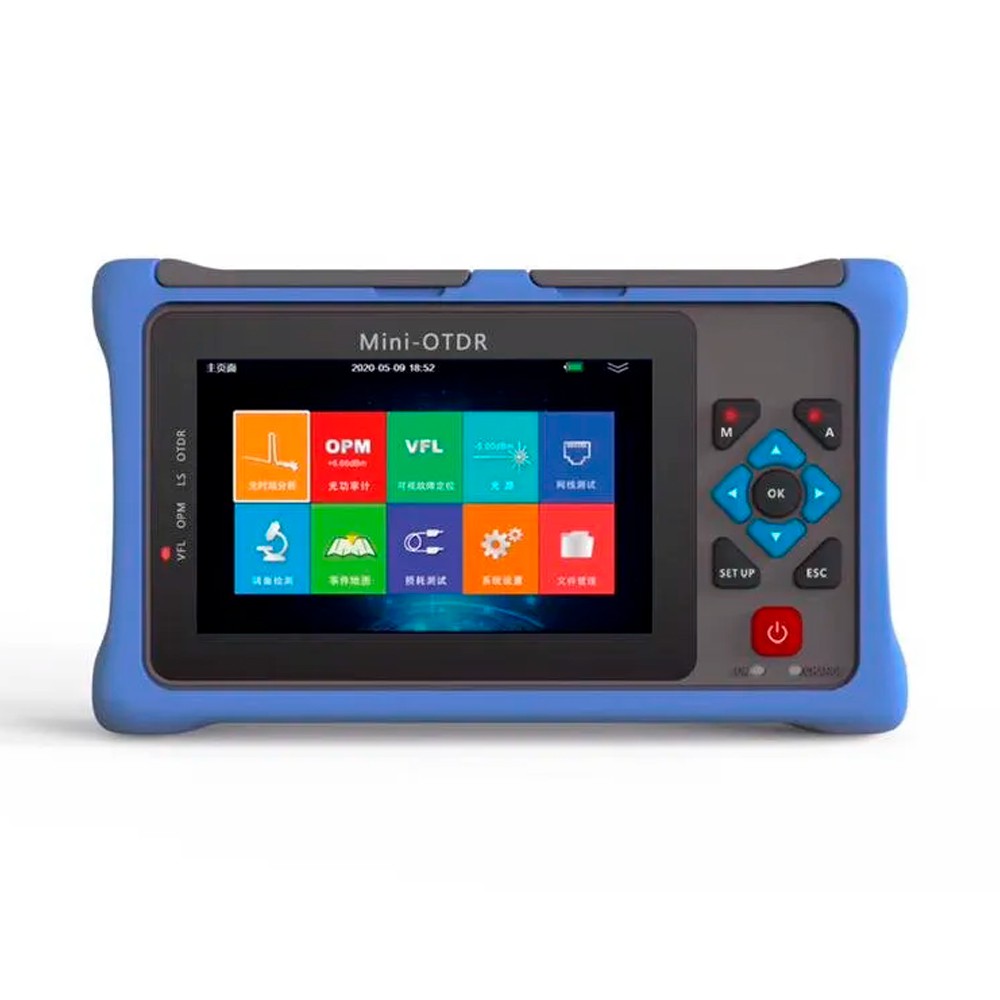

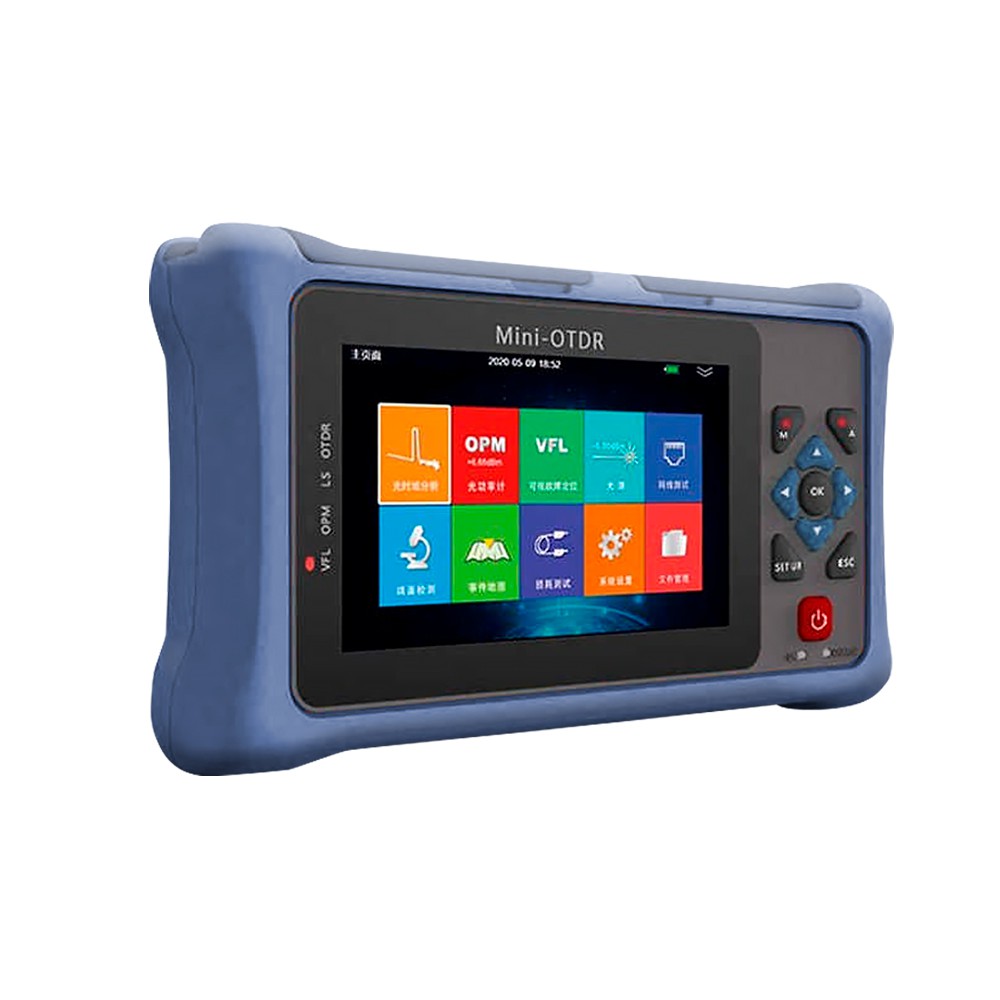

COOTD002 9 in 1 FTTH Meter – Mini OTDR Active Fiber

In stock

*MEASUREMENT RANGE*	100M, 500M, 2KM, 5KM, IOKM, 20KM, 40KM, 80KM / 90kKkM
*SAMPLING RESOLUTION*	MIN. 0.2 M
*SAMPLING POINT*	64,000 POINTS
*LINEARITY*	≤0.05DB/DB
*LOSS LIMIT*	LOSS LIMIT
*LOSS RESOLUTION*	0.001DB
*RANGE RESOLUTION*	0.01M
*RANGE ACCURACY*	± (0.5M + RANGE x 3 x 10 -5 + SAMPLING RESOLUTION) (EXCLUDING REFRACTIVE INDEX ERROR)
*MEMORY*	> 40000
*VFL*	10MW, CW/2HZ
*DATA INTERFACE*	2PCS USB(TYPE A x 1, MICRO USB x 1), SD CARD
*SCREEN*	4.3 INCH TFT-LCD UR TOUCH DISPLAY WITH STANDARD DISTRIBUTION CAPABILITY)
*BATTERY*	3.7V/5200MAH
*TEMPERATURE*	WORKING TEMPERATURE: -10ºC~+ 55ºC; STORAGE TEMPERATURE:-20ºC~+80ºC
*HUMIDITY*	≤95% (NO CONDENSATION)
*SIZE/WEIGHT*	175X105X45MM / 0.56KG (INCLUDING BATTERY)

The 4.3-inch capacitive touchscreen supports multi-touch, and its tempered glass panel ensures that you don’t worry about screen scratches. Support horizontal version, vertical version, perfect fusion of the two user operation habits. It is in line with international test data standards with perfect simulation software.

PIA type light port design, so that the instrument light port can get better protection. Support USB flash drive, SD card and micro USB export data protection.

Functions

1 – OTDR – Optical Time Domain Reflectometer/Active Fiber
2 – OPM – Optical Signal Level Check
3 – VFL – Optical Laser Pen
4 – Line Sear
5 – Network Cable Test
6 – Fiber Inspection
7 – Event Map
8 – Loss Test
9 – Flashlight
10 – Memory Card Slot
11 – USB Port

Physical Indicators

– 4.3 inch full view capacitive touch screen, TFT 600×480 resolution
– Lithium battery: 5200mAh/3.7V. Standby time >10 hours
– Size: 175x175x45mm, Weight: 650g(including battery);
– Working temperature: 10~+55ºC Storage temperature: -20~+80ºC
