Lan U/UTP CAT cable. 5e 4Px24AWG CMX RoHS (for indoor/outdoor use)

In stock

Main Features

– U/UTP – Unshielded cable
– Conductor – 100% Bare Copper
– Insulation – Solid thermoplastic (HDPE)
– Pairs – The conductors are twinned (twisted), forming a pair in the colors blue/light blue (pair 1), white/orange (pair 2), green/light green (pair 3) and brown/light brown (pair 4).
– Core – 4 twisted pairs composed of solid insulated bare copper conductors, brought together with an adequate pitch, forming the cable core
– CMX anti-UV external coating – Flame retardant characteristics. Its use is indicated for application in metal pipes where there is no concentration of cables or forced airflow and it is also free of heavy metals (RoHS), indicated for indoor/outdoor use
– Cat.5e – Transmission characteristics up to 100MHz

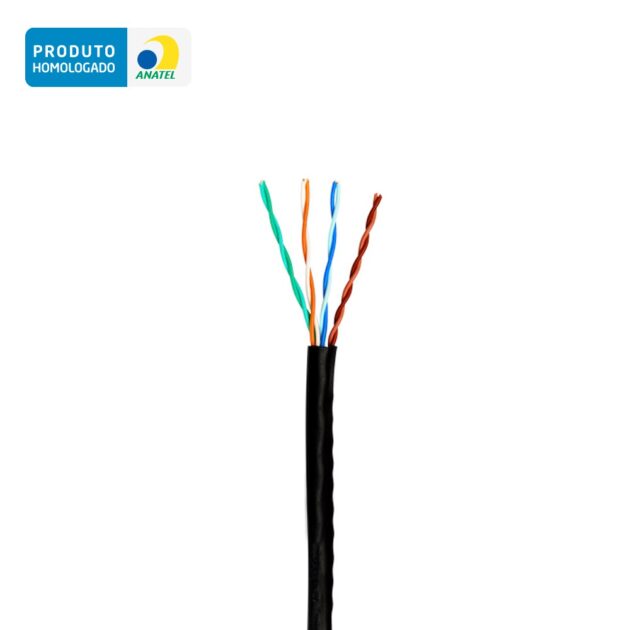

The Wec Lan U/UTP Cat.5e 4Px24AWG Cable is made of 100% bare copper conductors, 0.50mm (24 AWG), insulated with HDPE, twisted pair by pair and brought together, forming 4 pairs. Finally, a flame retardant anti-UV PVC cover is placed by extrusion process for indoor and outdoor use.
