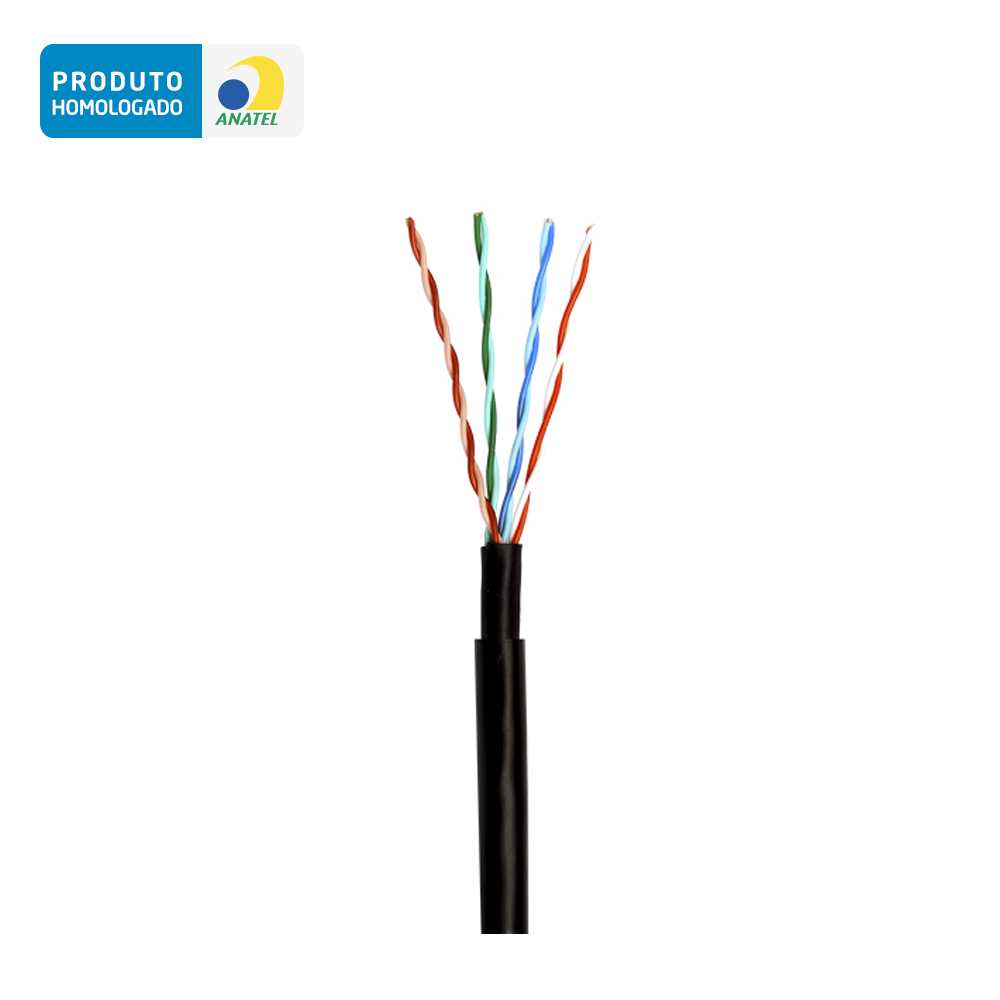

U/UTP CAT. 5e 4Px24AWG Double Jacket Lan Cable (Outdoor Use)

In stock

Technical Data:

U/UTP	Unshielded cable
Driver	100% Bare Copper
Insulation	Solid thermoplastic (HDPE)
Pairs	The conductors are twisted, forming a pair in the colors blue/light blue (pair 1), white/orange (pair 2), green/light green (pair 3) and brown/light brown (pair 4).
Core	4 twisted pairs composed of solid insulated bare copper conductors, assembled with an appropriate pitch, forming the cable core
External Coating – Double Layer	Flame-resistant characteristics. Its use is recommended for external aerial installation. 1st layer – flame retardant PVC CMX; 2nd layer – black thermoplastic PE with anti-UV additive for outdoor use;
Cat.5e	Transmission characteristics up to 100MHz
ANSI	568 – C.2
Category 1 Requirements	Anatel

The Wec Lan U/UTP Cat.5e 4Px24AWG Cable was developed for high-speed data transmission, for the Gigabit Ethernet application (IEEE 802.3E, 1000Mbps), 1000 Base-t, ATM 155 and 622mb/s and other compatible standards.

The Wec Lan U/UTP Cat.5e 4Px24AWG Cable is made of 100% bare copper conductors, insulated with HDPE, twisted pair by pair and joined together, forming 4 pairs. Finally, a DOUBLE COVER is placed by extrusion process, PVC on the inside and PE on the outside in black with anti-UV protection for outdoor use.
