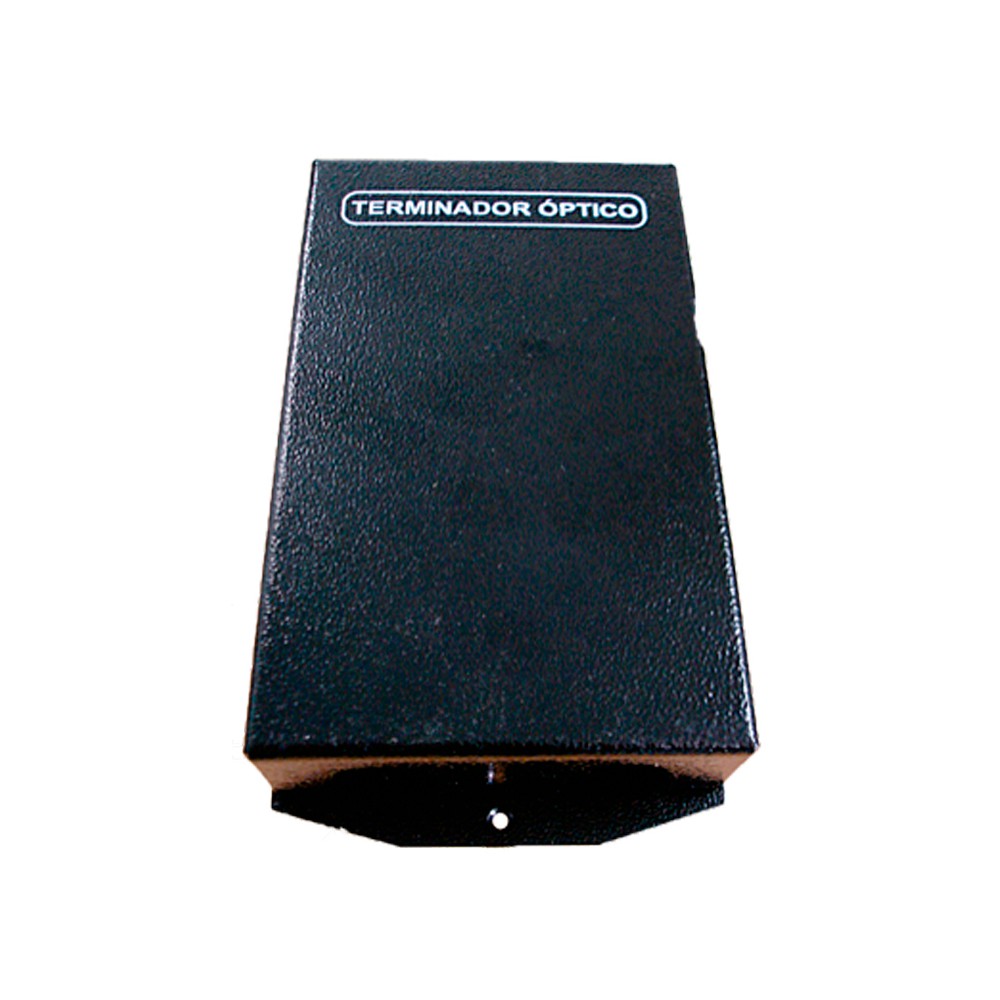

Metallic Optical Terminator

In stock

Main Features

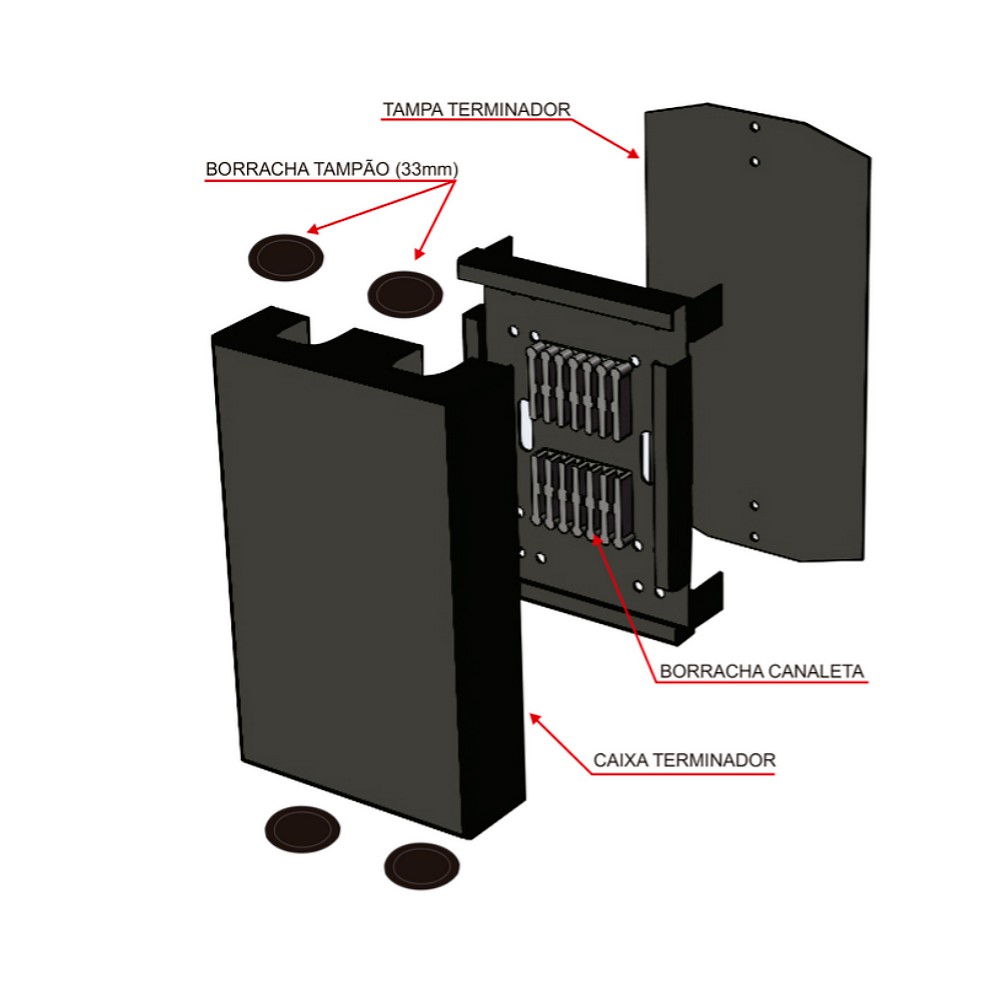

– Composed of box, lid and tray to accommodate up to 12 fusions
– Structure in 1010 carbon steel with 0.9mm thickness
– Painted in textured epoxy powder paint (beige, black or graphite)
– 4 cable/cord inputs/outputs, sealed by means of buffer rubber
– Fixation of optical cables made directly on the splice accommodation tray
– Closing of the lid made by means of M4 screws
– Supplied with 4 plastic clamps used to fix the cables and with splice protectors (60x1mm) according to the quantity of fibers requested: 6 to 12
– Supplied with S6 nylon bushings and 3.9×32 screws (for wall fixing)

Accessory used for optical termination, making the transition between the cable and the optical extension, through fusion splicing. Product developed to accommodate up to 12 optical splices.
