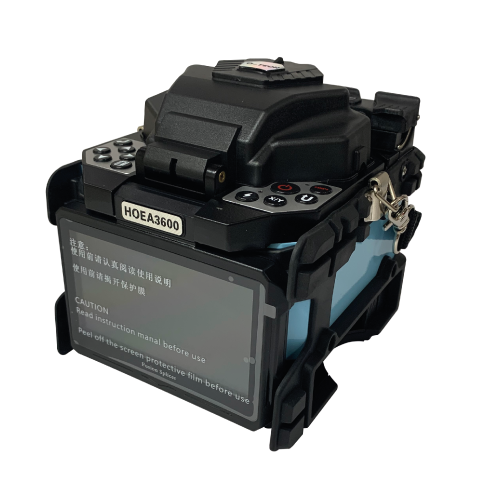

HOEA3600 – Fiber Optic Fusion Splicer 6 Motors

In stock

Compatible fibers	SM (ITU-T G.652), SM BLI (ITU-T G.657), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Cleaved fiber length	From 5mm
Fiber diameter	Shell diameter: 80~150µm
Cover diameter	100~1000µm
Autofocus	Available
Fiber alignment method	Core alignment
Average splice loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB(NZDS)
Time for amendment	8 seconds
Warm-up time	15 seconds
Compatible tubes	40, 45 and 60mm
Tensile test	1.96 ~ 2.25N
Electrode duration	5000 mergers
Battery capacity	Typical: 220 cycles (melting and heating)
Monitor	4.3″ Color TFT LCD
Languages	Portuguese, English, Spanish, French and Chinese
Connections	USB; software update via USB interface
*Operating conditions*	0~5000m above sea level 0~95% relative humidity temperature -10~50oC Maximum wind speed 15m/s
Fusion modes	Automatic and normal
Limit angle of cleaved fiber	0.1 ~ 10.0o, 0.1o step
Food	Li Battery 11.1V 5.2AH, Source 100~240VAC, 12VDC/5.0A
Dimensions	120 x 120 x 130mm
Weight	1.9kg (with battery)

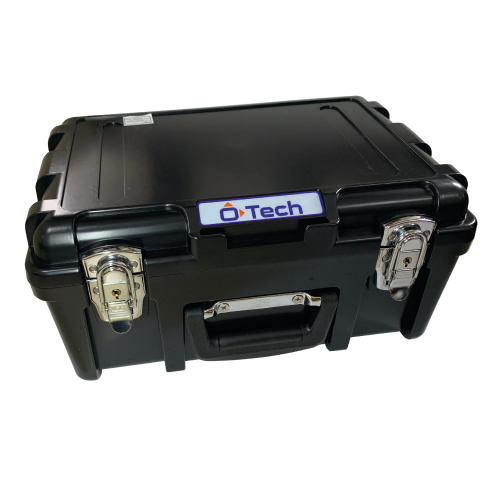

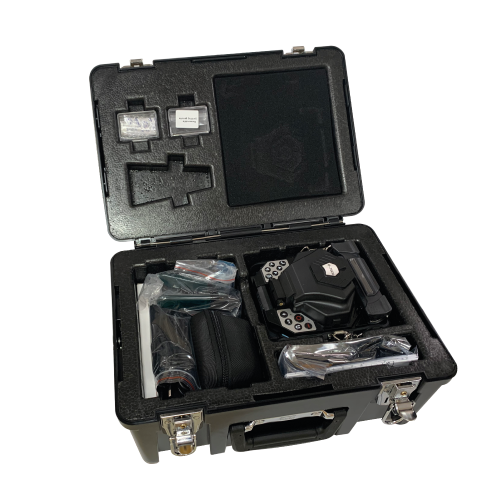

HOEA3600 Fusion Splicer + Complete Tool Kit 6 Motors. The O-TECH HOEA3600 Fusion Splicer is highly reliable and features advanced imaging system and fully digital processing technology.

The HOEA3600 Fusion Machine has core-to-core alignment with 6 motors. During the Fusion process, it allows individual or simultaneous viewing of the X and Y axes.

Internal battery, with autonomy for 220 complete cycles (fusion and heating). The internal LED lighting allows full use at night or in poorly lit environments. The electrodes are easy to replace, without the need for tools, and last for approximately 5,000 fusions.

Main Features

– Precise, lightweight and compact
– Core alignment
– Fusion in just 8 seconds
– Shock, dust and wind proof
– Has a long battery life
– Menu in Portuguese and Password system.
