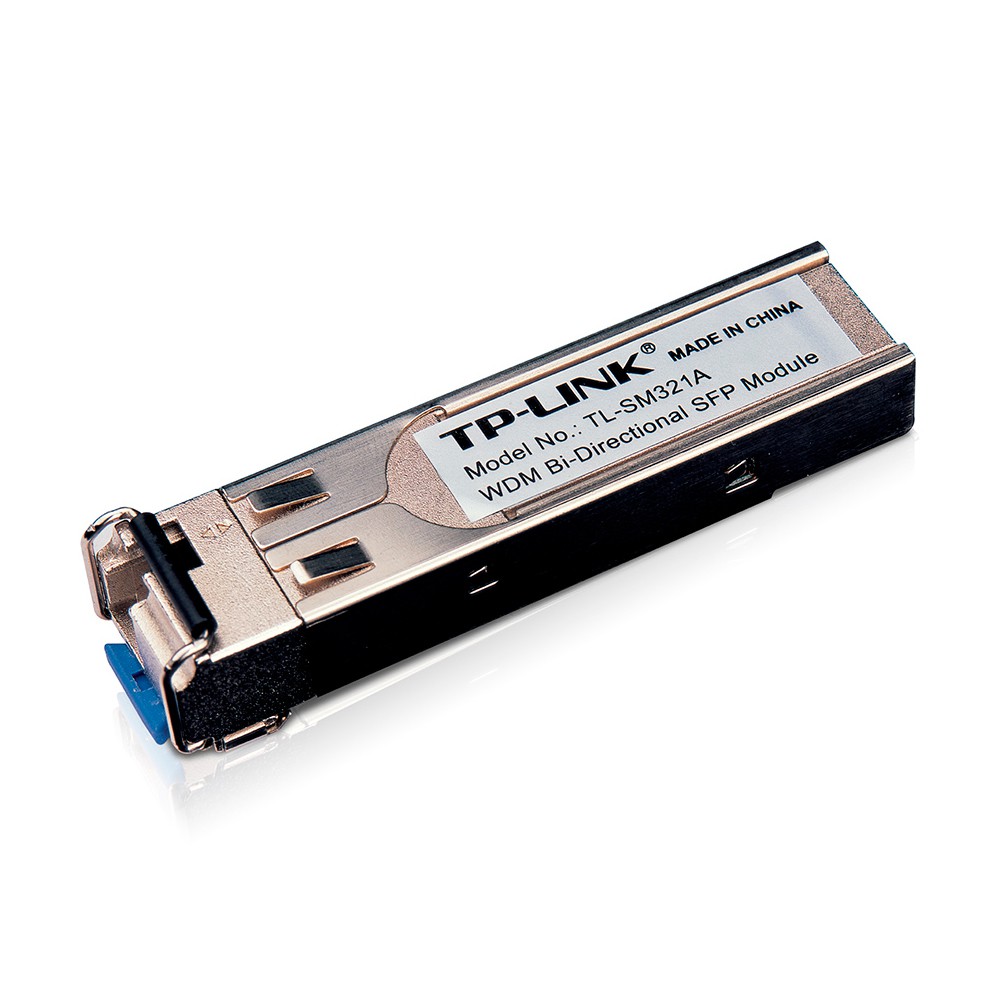

TL-SM321A – Bi-Directional WDM SFP Module

In stock

Technical Data:

*Standards and Protocols*	IEEE 802.3z, CSMA/CD, TCP/IP
*Wavelength*	TX: 1550nm / RX: 1310nm
*Power Source*	3.3V
*Security and Emission*	FCC, CE
*Cable*	Single mode fiber
*Fiber Type*	Single mode 9/125 um
*Maximum Cable Length*	10km
*Data Rate*	1.25Gbps
*Door Type*	LC/UPC
*Environment*	Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

TP-Link’s TL-SM321A adopts the latest 1000Base-BX transmission standard over a single fiber with a different wavelength going in each direction. You can extend the network distance up to 10 kilometers with TP-Link routers, switches, and media converters, providing high speed and stability.

With high performance, they use optical fiber as a means of transmitting and receiving data, which allows long-distance connections between switches that have SFP slots. Easy to use, they can be installed directly on Intelbras switches without the need to disconnect them (Plug & Play and Hot swap).
