| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU Core Count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 444 x 148 x 47 mm |
| License level | 6 |
| Operating system | RouterOS |
| RAM size | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Ambient temperature tested | -40°C to 70°C |
| Food | PoE In: 802.3af/at PoE In Input Voltage: 20 to 57 V Number of AC Inputs: 2 AC Input Range: 100-240 Number of DC Inputs: 2 (2-pin terminal, PoE-IN) 2-pin terminal input voltage: -48, 12-57 V Max Power Consumption: 20 W |
| Ethernet | Ethernet ports: 10/100/1000 13 |
| Peripherals | Memory Card Type: microSD Memory Cards: 1 Serial Port: RS232 |

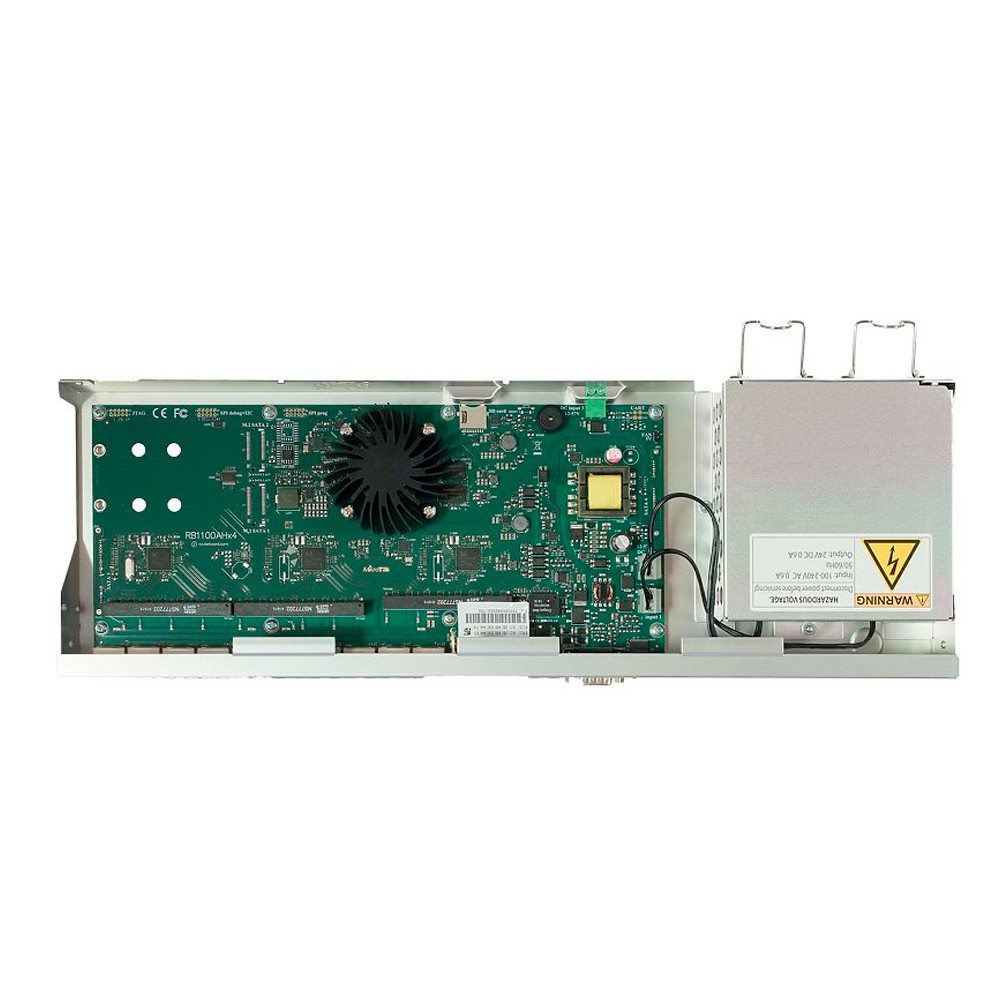

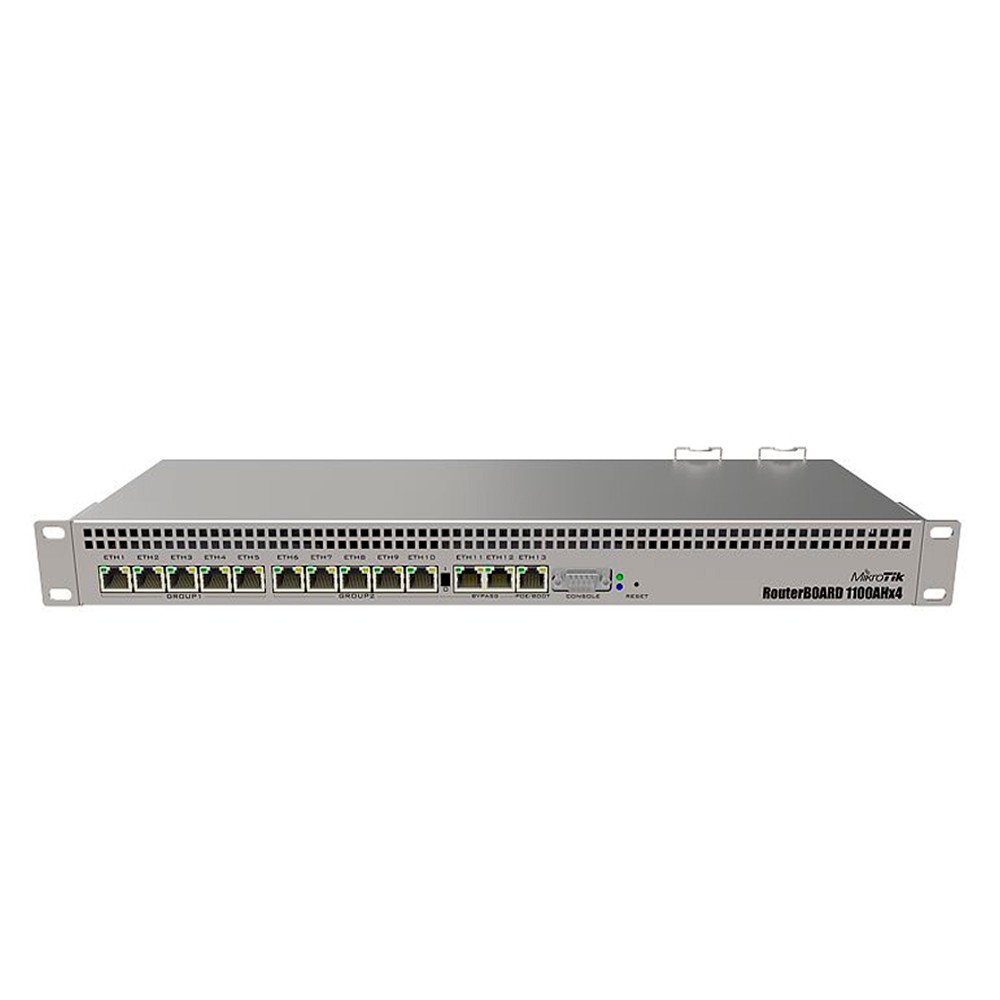

The RB1100AHx4 model, with 13 Gigabit Ethernet ports, is equipped with an Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

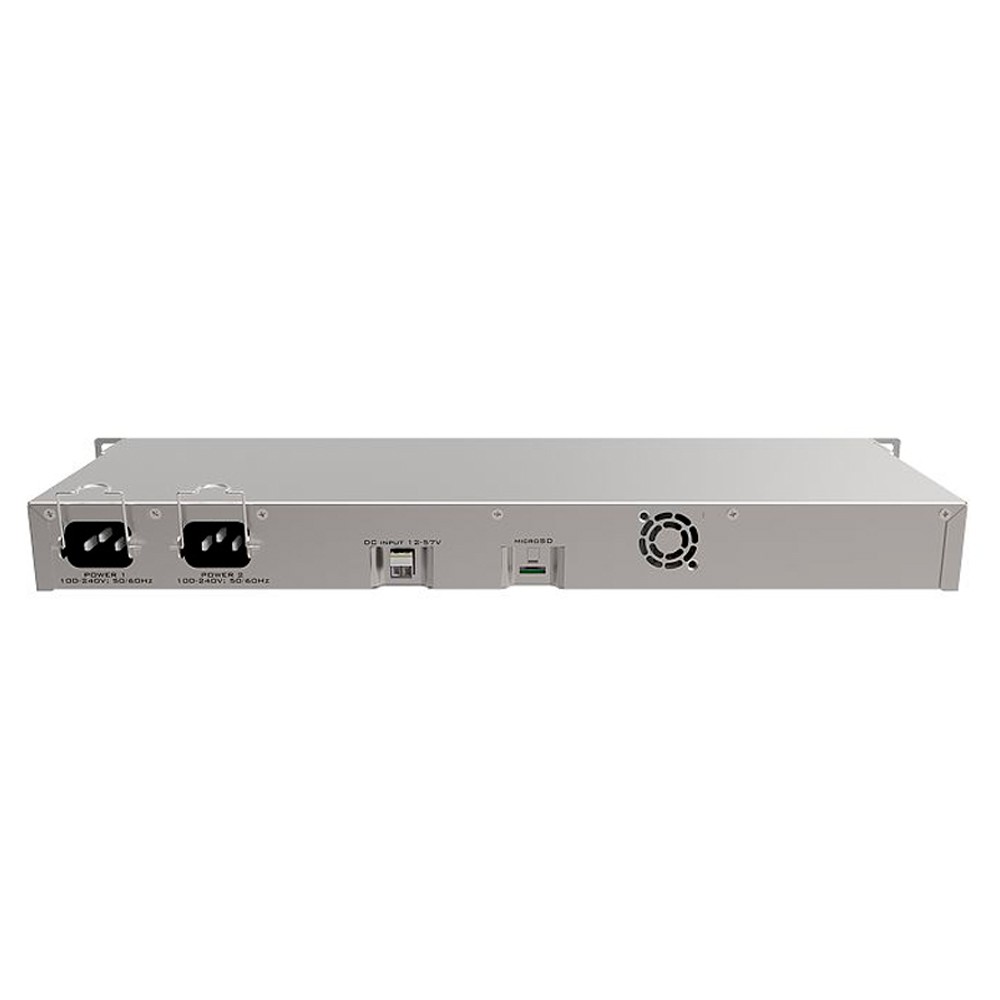

The unit comes with a 1U rackmount enclosure, RS232 serial port, and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
