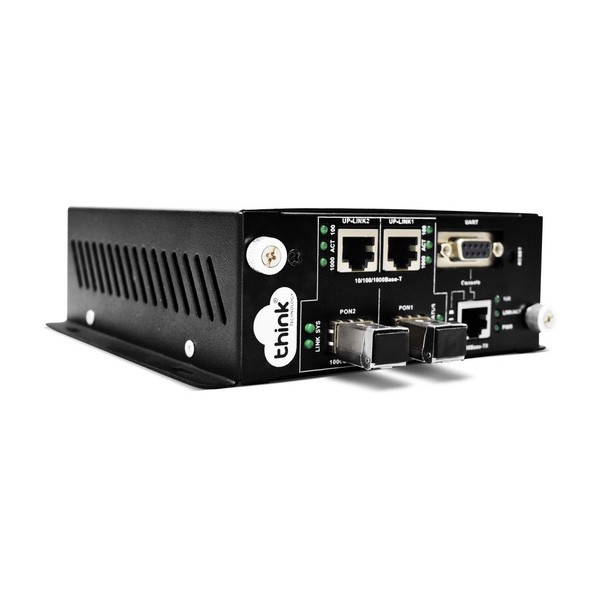

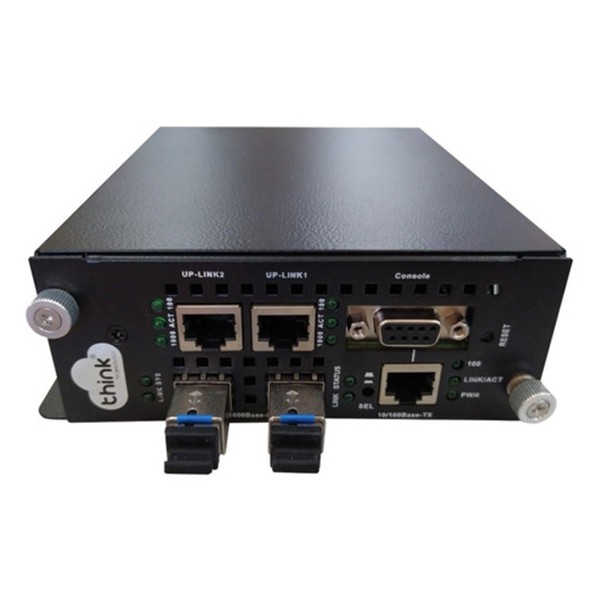

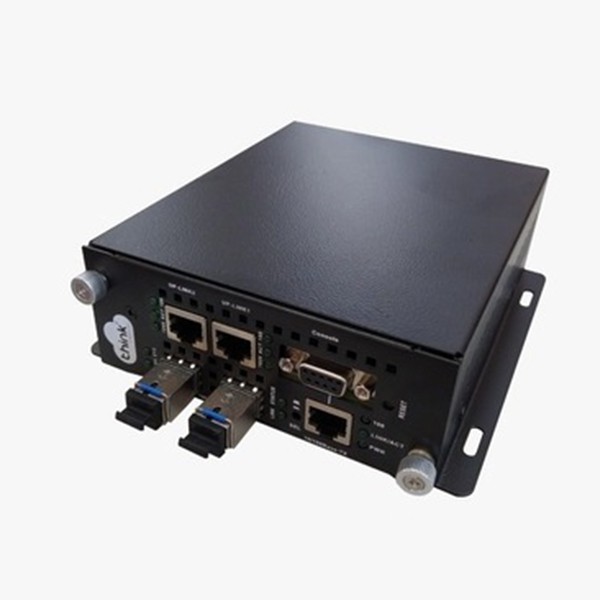

The TK-HA7120 MINI CHASSIS OLT is an essential equipment for providers to bring internet and data services to the subscriber. It provides 2 SFPPON ports, 2 10/100/1000Mbps Uplink ports, RJ45 management port and 1 console port.
Each PON port supports 1:128 split ratio, and the distance can reach up to 20km. Better applicability for large areas to be served, realizing integrated network access and surveillance transmission.
NETWORK FEATURES:
• Encryption: AES 128 Encrypt;
• VLAN support
• QoS support;
• SNMP support;
• IGMPv.1 and v.2 support;
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab protocols;
• DHCPsnooping support;
• IPv4 and IPv6 protocols;
• ARPsnooping and QoS table support.
OPTICAL INTERFACE:
• EPON/GPON standard (IEEE 802.3ah);
• Data rate 1.25Gbps Downlink / 1.25Gbps Uplink
• Automatic discovery and registration of ONUs, performed in real time.
