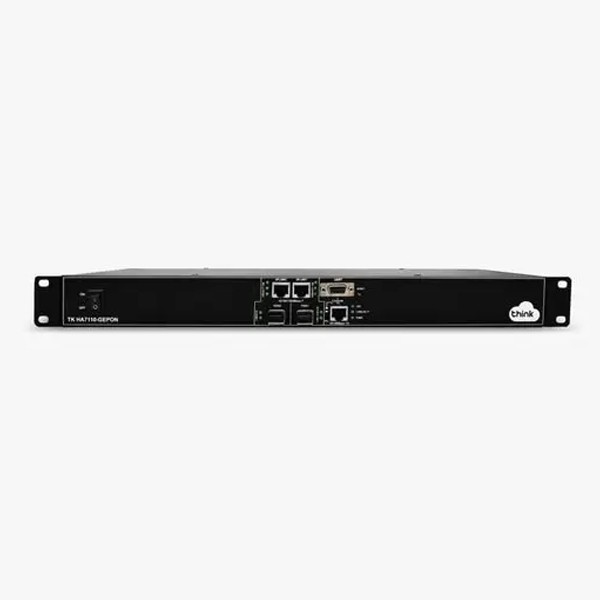

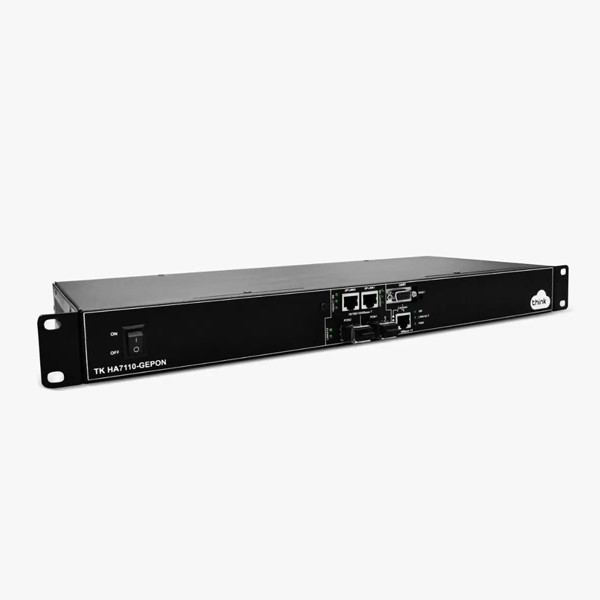

OLT Chassis 1U – 2 Ports (TK-HA7110)

In stock

Technical Data:

*Food*	127VAC or 24VDC
*Wave-length*	Transmission (Tx): 1490nm Reception (Rx): 1310 nm
*Optical power*	0 to +7dBm
*Receipt Sensitivity*	-25dBm
*Maximum operating distance*	20km
*Service capacity*	2PON system, supports up to 128 ONUs per port (SC/UPC)
*MAC*	8K
*Door*	2 Gigabit SFP PON ports 2 GE Uplink ports 1 FE management port 1 RS232 DB9 serial port

The Think TK HA7110-GEPON OLT has 2 GEPON ports that support up to 256 ONUs/ONTs (128 per port).
It also has 2 SFP/GBIC ports, 2 Gigabit Ethernet ports for uplink, 1 console port, and 1 serial port for management.

It has management software (graphical mode) that allows you to monitor and manage the OLT and the ONUs/ONTs connected to the network.

Each PON port supports 1:128 split ratio, and the distance can reach up to 20km. Better applicability for large areas to be served, realizing integrated network access and surveillance transmission.

NETWORK FEATURES:

• Encryption: AES 128 Encrypt;
• VLAN support
• QoS support;
• SNMP support;
• IGMPv.1 and v.2 support;
• IEEE 802.3, IEEE 802.3u, IEEE 802.3ab protocols;
• DHCPsnooping support;
• IPv4 and IPv6 protocols;
• ARPsnooping and QoS table support.

OPTICAL INTERFACE:

• EPON/GPON standard (IEEE 802.3ah);
• Data rate 1.25Gbps Downlink / 1.25Gbps Uplink
• Automatic discovery and registration of ONUs, performed in real time.
