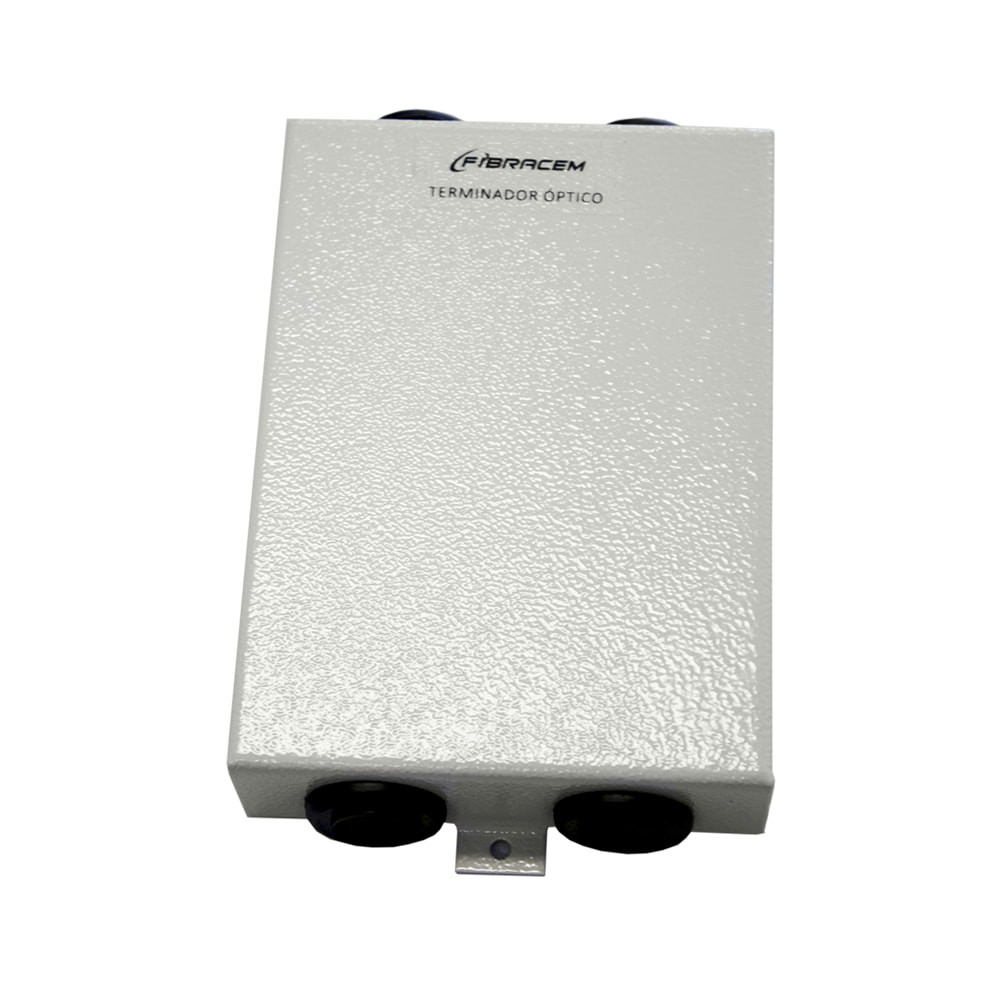

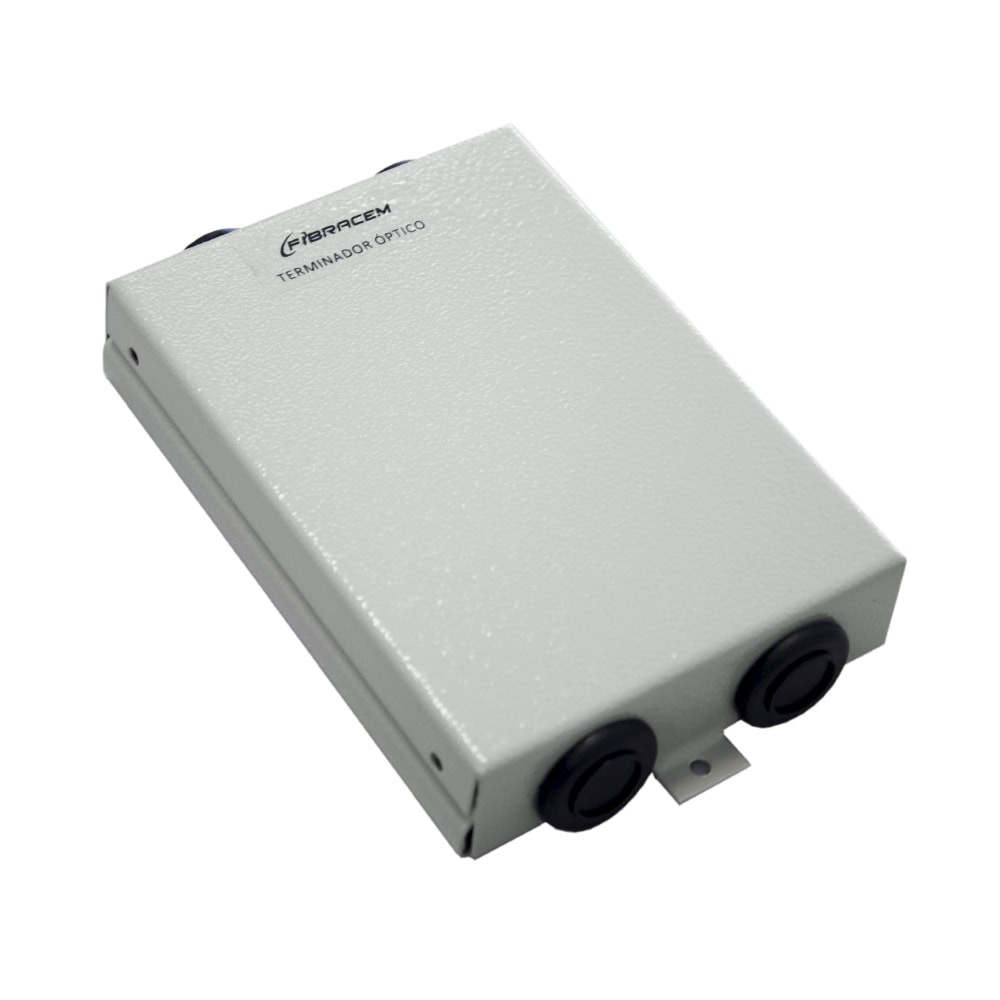

Metallic Optical Terminator 06 Fibers

In stock

It has 4 cable entries, sealed with a rubber stopper. The lid is closed with M4 screws. The optical cables are fixed directly to the splice tray.

Main Features

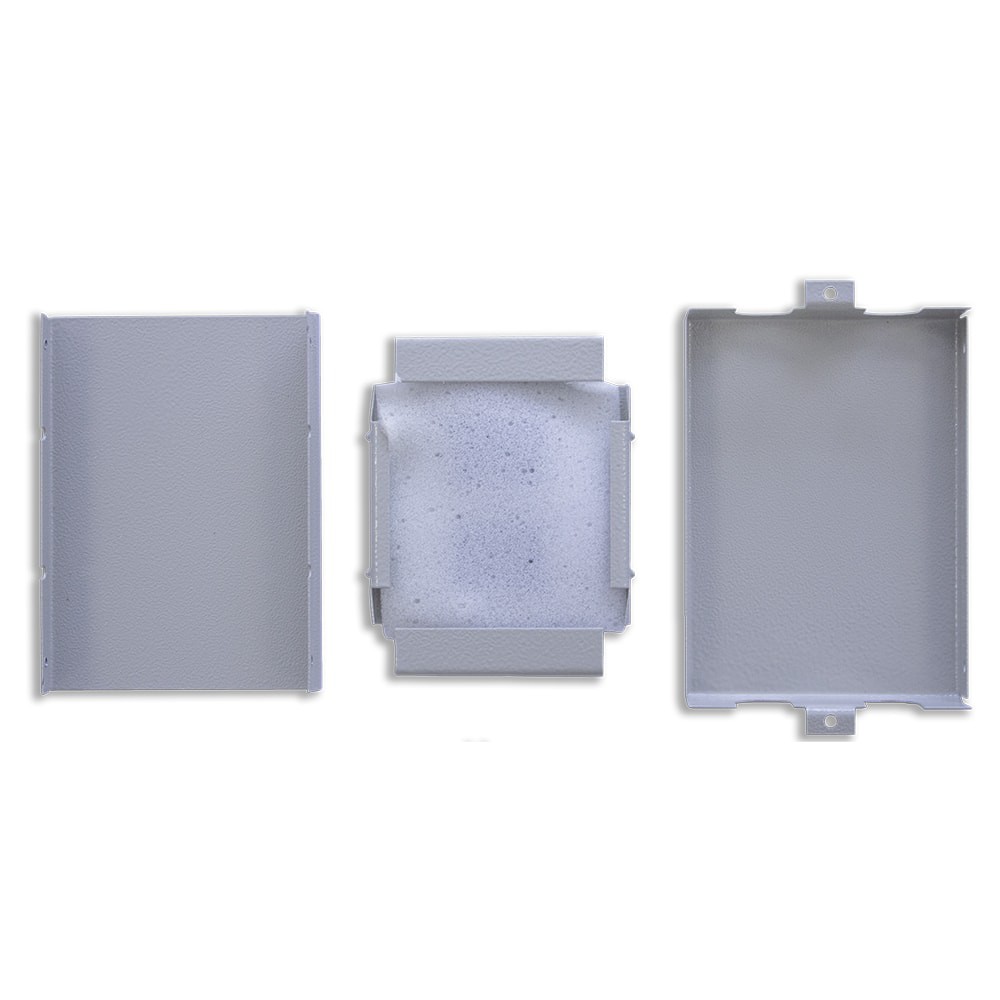

– Composed of box, lid and tray to accommodate 12 splices
– Structure in 1010 carbon steel with a thickness of 0.9mm
– Painted in textured beige (RAL 7032) or micro-textured black epoxy powder paint
– Has 4 cable entries, sealed by means of a rubber buffer

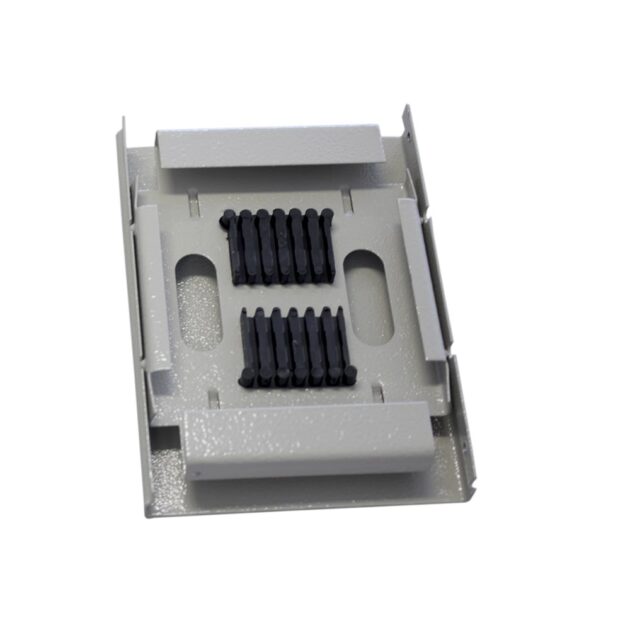

– Fixation of optical cables made directly on the splices accommodation tray
– Closing of the lid made by means of M4 screws
– Supplied with 4 plastic clamps used to fix the cables and with splice protectors (60x1mm) according
to the quantity of fibers requested: 6 or 12
– Supplied with S6 nylon bushings and 3.9×32 screws for wall fixing

Product used for optical termination, making the transition between the cable and the optical extension, through fusion splicing. Developed to accommodate up to 06 optical splices in its internal tray.
