XPON ONT XC220-G3
100 in stock
Technical Data:
| HARDWARE FEATURES | |
|---|---|

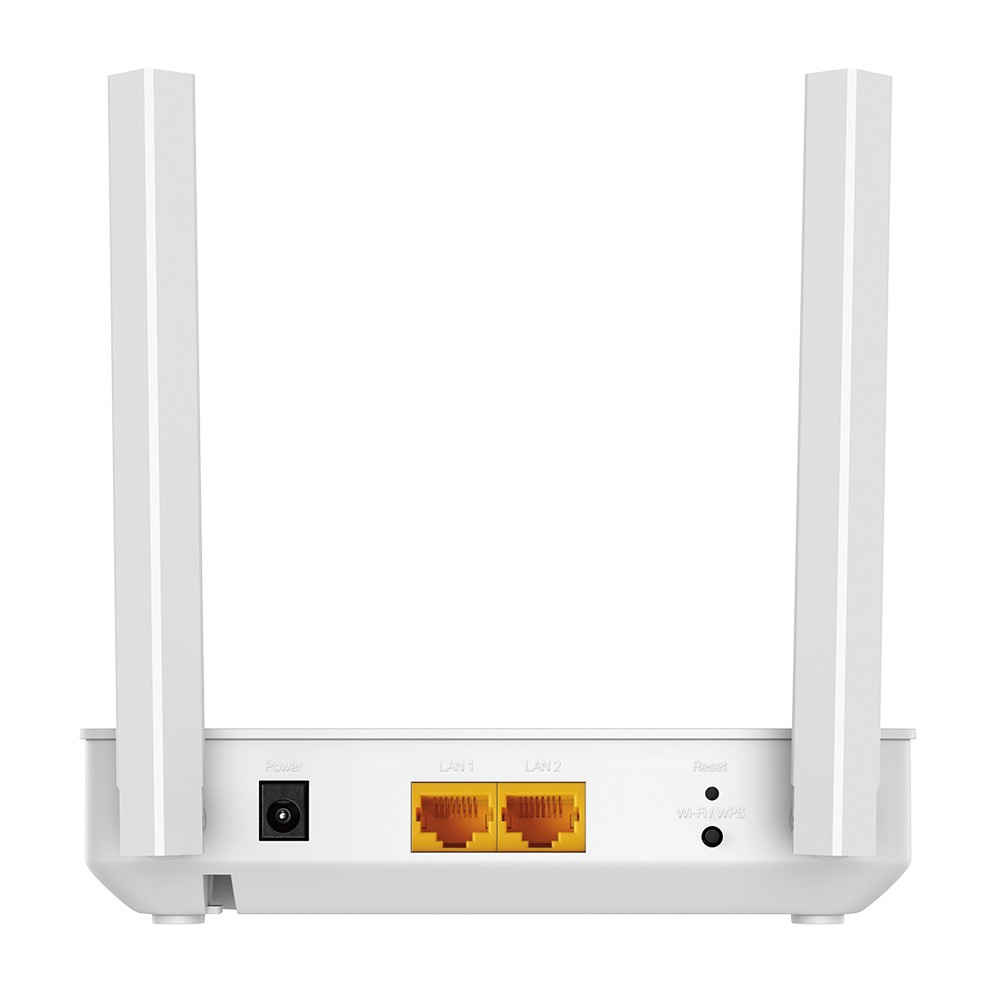

| Interface | 2 RJ45 LAN Ports 10/100/1000 Mbps 1 PON Port |
| Button | WPS/Wi-Fi Button, RESET Button |
| External Power Supply | 12V/1.0A |
| Data Rate | Downstream Speed: 2.488 Gbps (GPON), 1.25 Gbps (EPON) Upstream Speed: 1.244 Gbps (GPON), 1.25 Gbps (EPON) § |
| Antenna | 2 external Dual Band antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 867 Mbps on 5 GHz, 300 Mbps on 2.4 GHz |
| Transmission Power | 2.4GHz: 26dBm(EIRP), 5GHz: 28dBm(EIRP) |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics. |
| Wireless Security | WPA/WPA2/WPA3 encryptions |
| Wireless Scheduling | Supports 2.4 GHz and 5 GHz Wireless Scheduling |
| Mesh Technology | Compatible with EasyMesh, and supports 802.11k/v/r |
| SOFTWARE FEATURES | |
|---|---|
| QoS | Hardware QoS |
| Security | NAT Firewall, Access Control, MAC/IP/URL Filtering, IP and MAC Address Binding, “Denial of Service (DoS) Defense, SYNFlooding, Ping of Death” |
| Management | Local management: WebGUI management, Aginet application management Remote management: Aginet ACS, OMCI, TR-069, TR-098, TR-181, TR-111, TR-143 Cloud management: TP-Link Aginet Unified Cloud (TAUC) |
| DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
| Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| Protocols | IPv4, IPv6 |
| Advanced Functions | Parental Control, Network Address Translation (NAT), Port Mapping (Teaming), Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3. |
| OTHERS | |
|---|---|
| Package Contents | AC1200 XPON Terminal XC220-G3 RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled web browser Internet service subscription with a service provider (to access the Internet) |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |

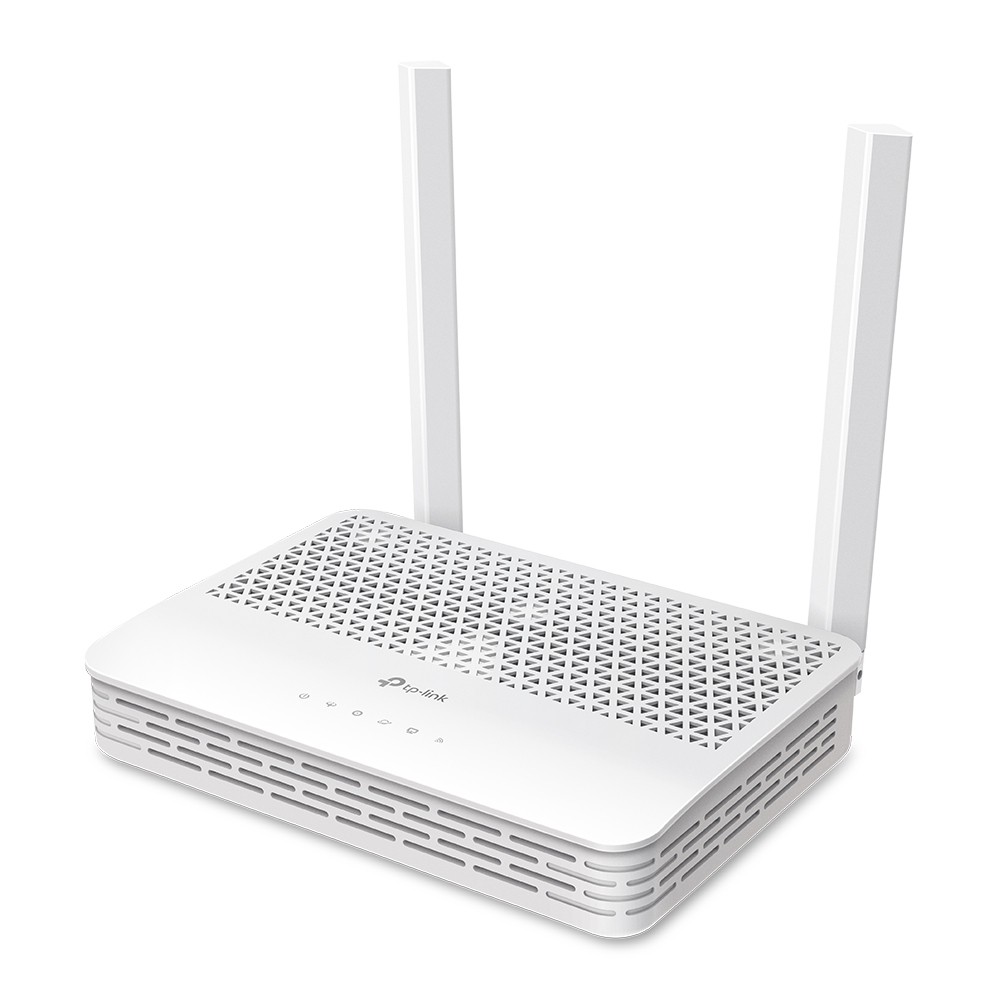

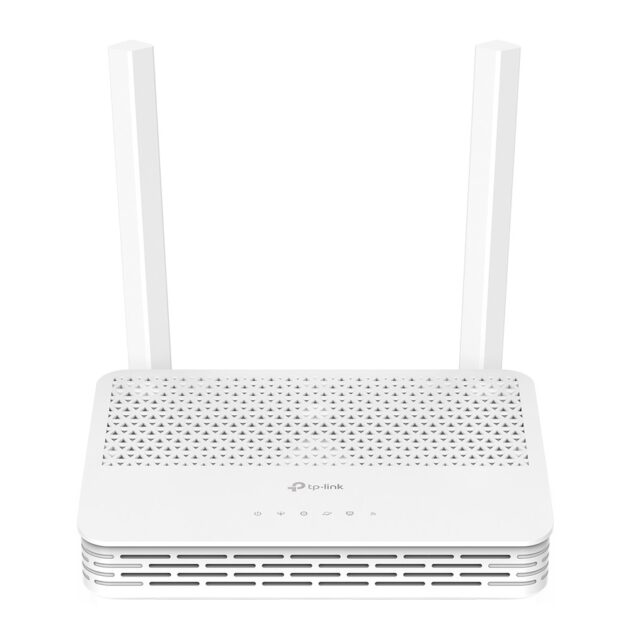

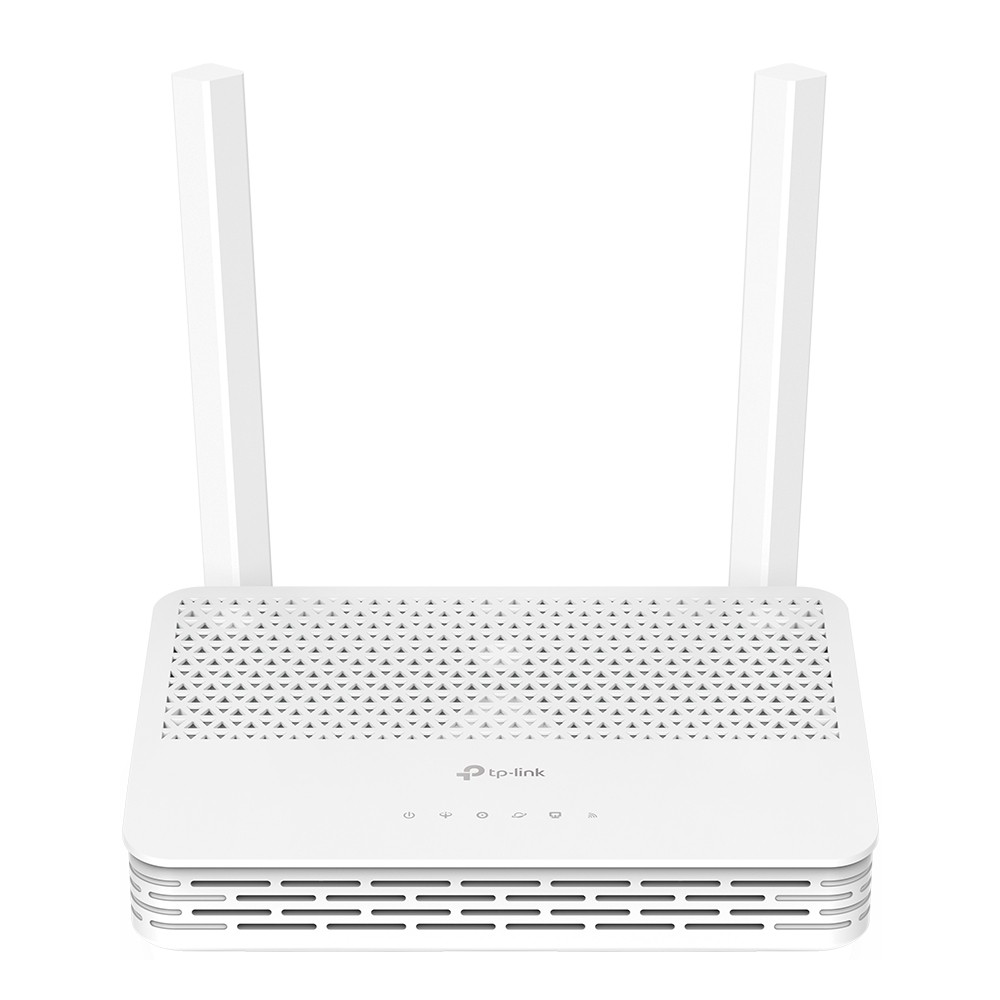

TP-Link’s AC1200 Wireless XPON Router XC220-G3 is an XPON terminal that supports Gigabit passive optical network and Ethernet passive optical network, ideal for Fiber-to-the-Home solution, allowing users to access high-speed Internet connection through the XPON port and devices to connect wirelessly with 802.11ac wireless speed of 1200Mbps. The XC220-G3 provides a perfect terminal solution and future-oriented service, supporting features for FTTH deployment.
- Super-Fast Dual-Band WiFi: WiFi speeds of up to 1.2Gbps, 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band.*
- Dual XPON Modes: Supports GPON and EPON modes for flexible fiber optic internet access.
- EasyMesh Compatible: Provides whole-home WiFi coverage with standard mesh technology. △
- Smooth IPTV: Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming.
- Advanced Security: Protect your network with firewalls and the latest WPA3 encryption.**
- Full Gigabit Ports: Up to 10x faster than standard Ethernet, deliver ultra-fast wired performance.

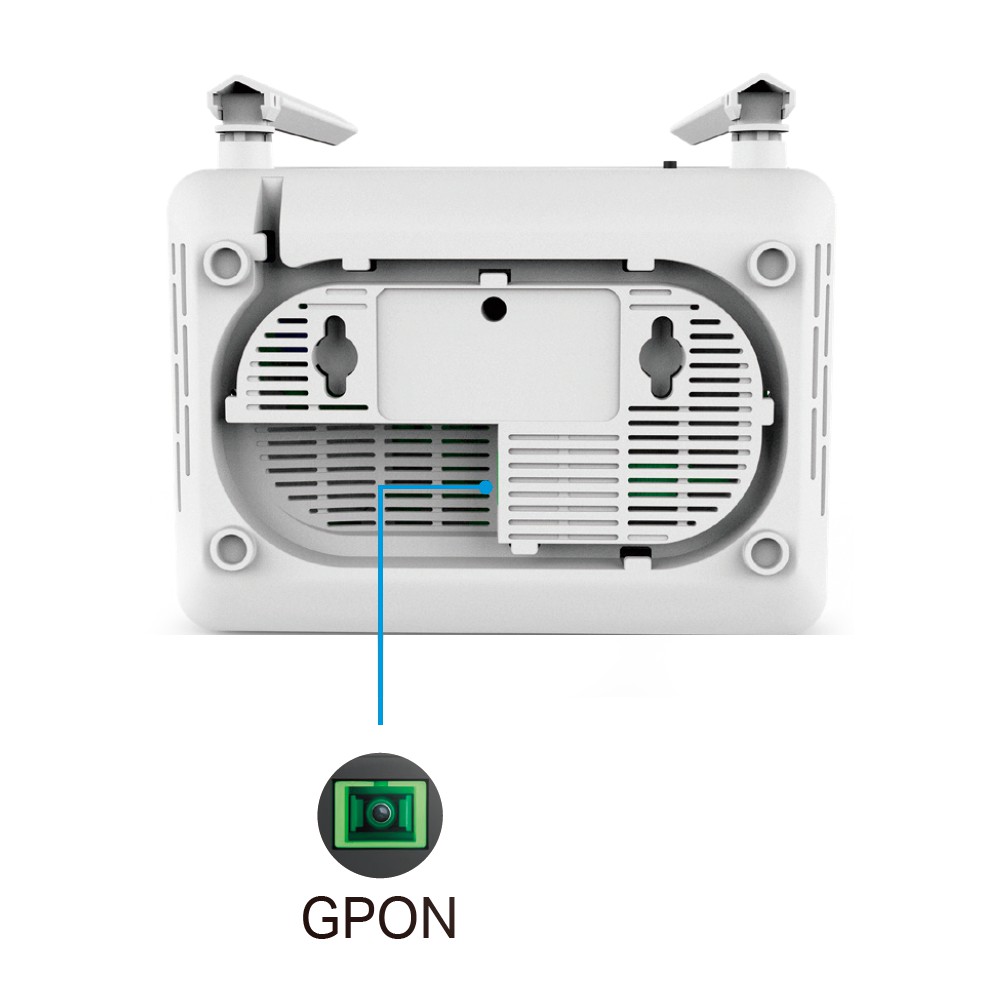

- Compact Fiber Tray Design: Stores a redundant fiber cable inside and protects the fiber cable from breakage.
- Easy Setup: Set up your network in minutes with the powerful Aginet app.
- Remote Management: OMCI (ONT Management and Control Interface) and TR-069 protocols are supported.
