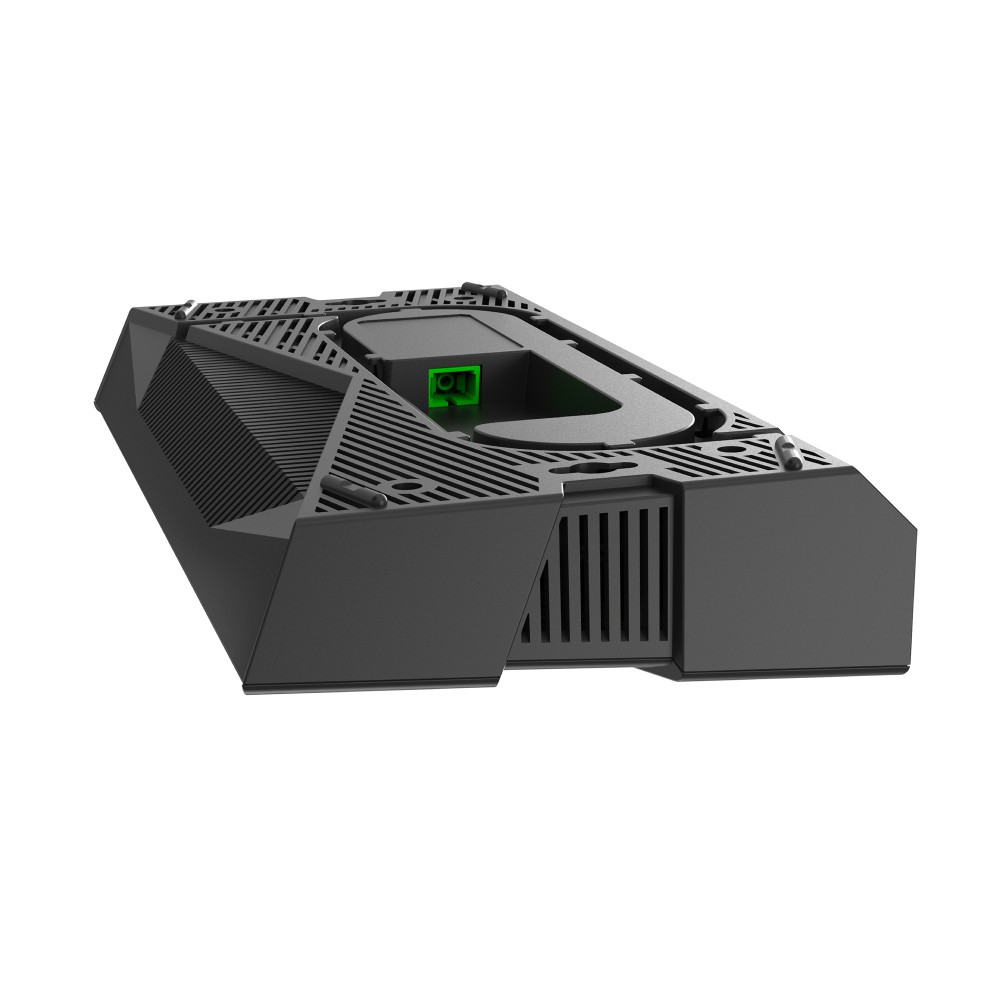

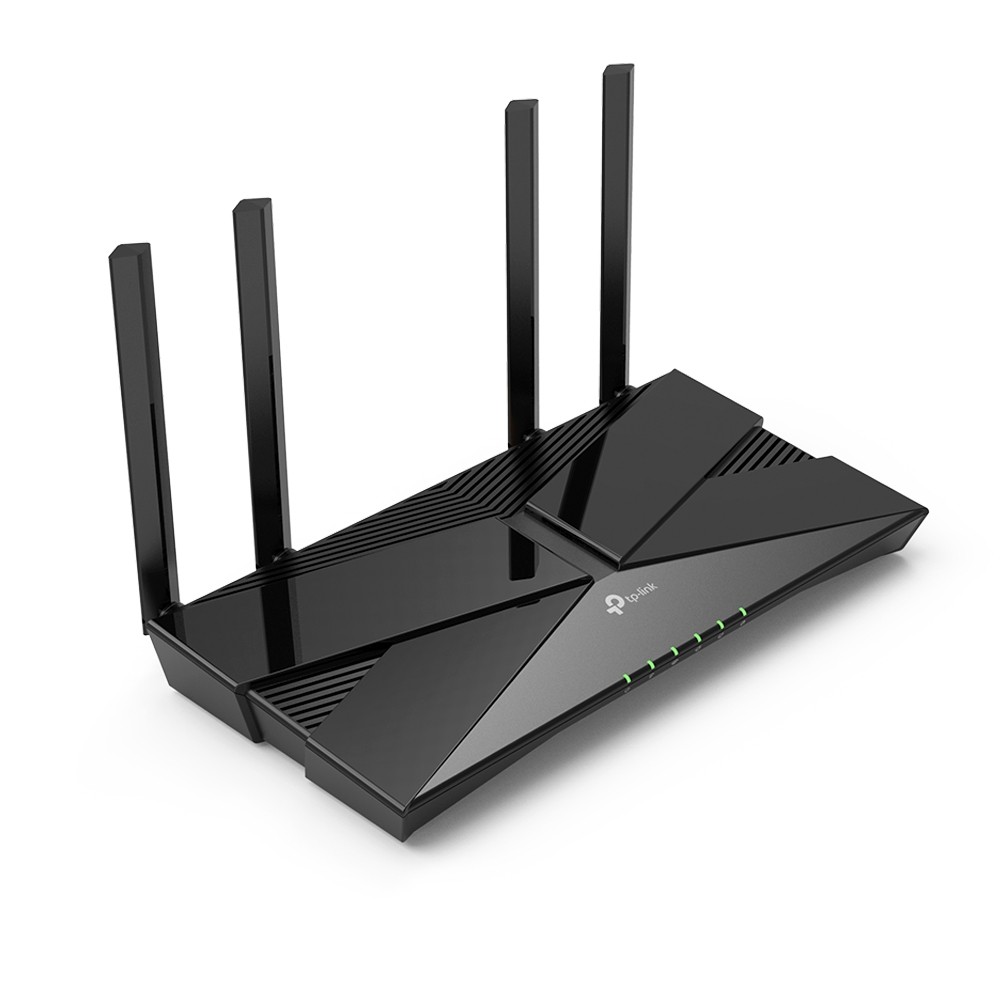

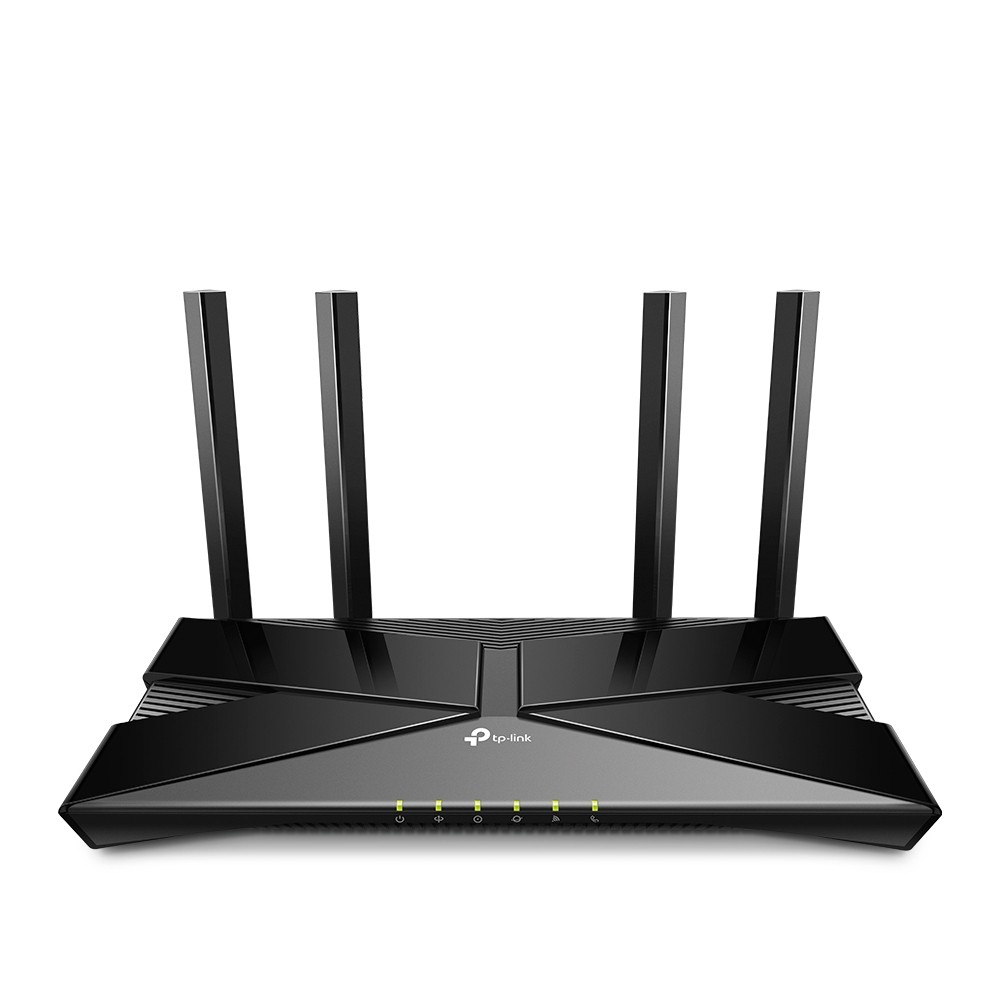

The XX230v is a GPON router that utilizes 802.11ax Wi-Fi technology, delivering an enhanced Wi-Fi experience. It offers backward compatibility with previous standards such as Wi-Fi 802.11 a/b/g/n/ac, allowing older devices to connect as well. The XX230v complies with ITU-T G.984 GPON standards, enabling it to support high data rates. Maximum transmission speeds reach 2.488 Gbps downstream and 1.244 Gbps upstream, ensuring a fast and reliable connection. TP-Link’s AX1800 Dual Band Wi-Fi 6 GPON Router XX230v is an advanced solution for high-speed Internet connections, delivering enhanced performance for intensive online activities.
TP-Link XX230V GPON Router + ONU Terminal Specifications

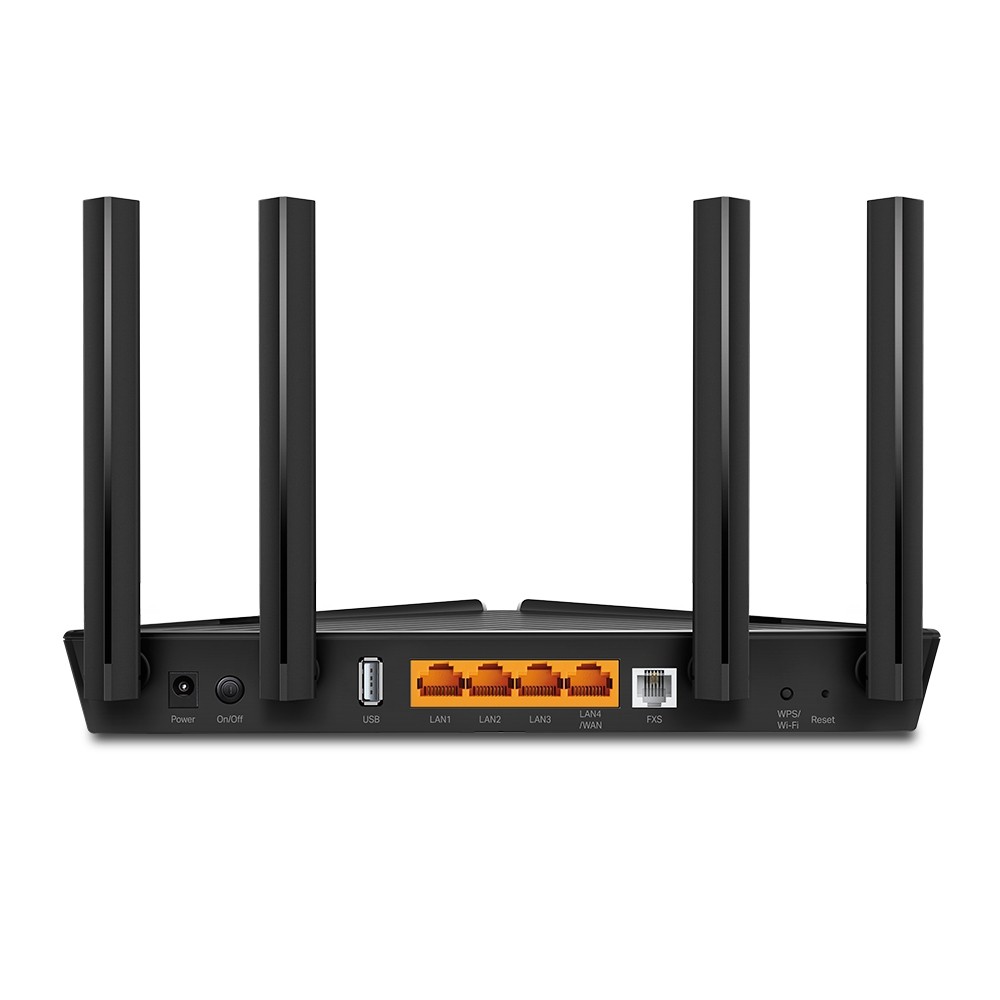

– Interface: 4x 10/100/1000 RJ45 LAN ports, 1x FXS port, 1x GPON SC/APC port
– Wireless Standards: IEEE 802.11 a/n/ac/ax 5 GHz, IEEE 802.11 b/g/n/ax 2.4 GHz
– Signal Rate: 1201 Mbps at 5 GHz, 57.4 Mbps at 2.4 GHz
– Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
– VPN Server: PPTP VPN, IPSec VPN, OpenVPN
– VolP Features: Call Waiting, Call Forwarding, Do Not Disturb, Call Restriction, Speed Dial, etc. Caller ID, 3-way Conference, SIP Account – Up to 8 accounts
– Warranty: 5 years
– Anatel Approval: 07716-22-03177
Dimensions/Weight
– Dimensions (W x D x H): 330 x 240 x 84mm
– Weight: 0.93Kg
Package Contents
– AX1800 Wi-Fi 6 GPON Terminal
– Power Supply
– RJ45 Ethernet Cable
– Installation Guide
