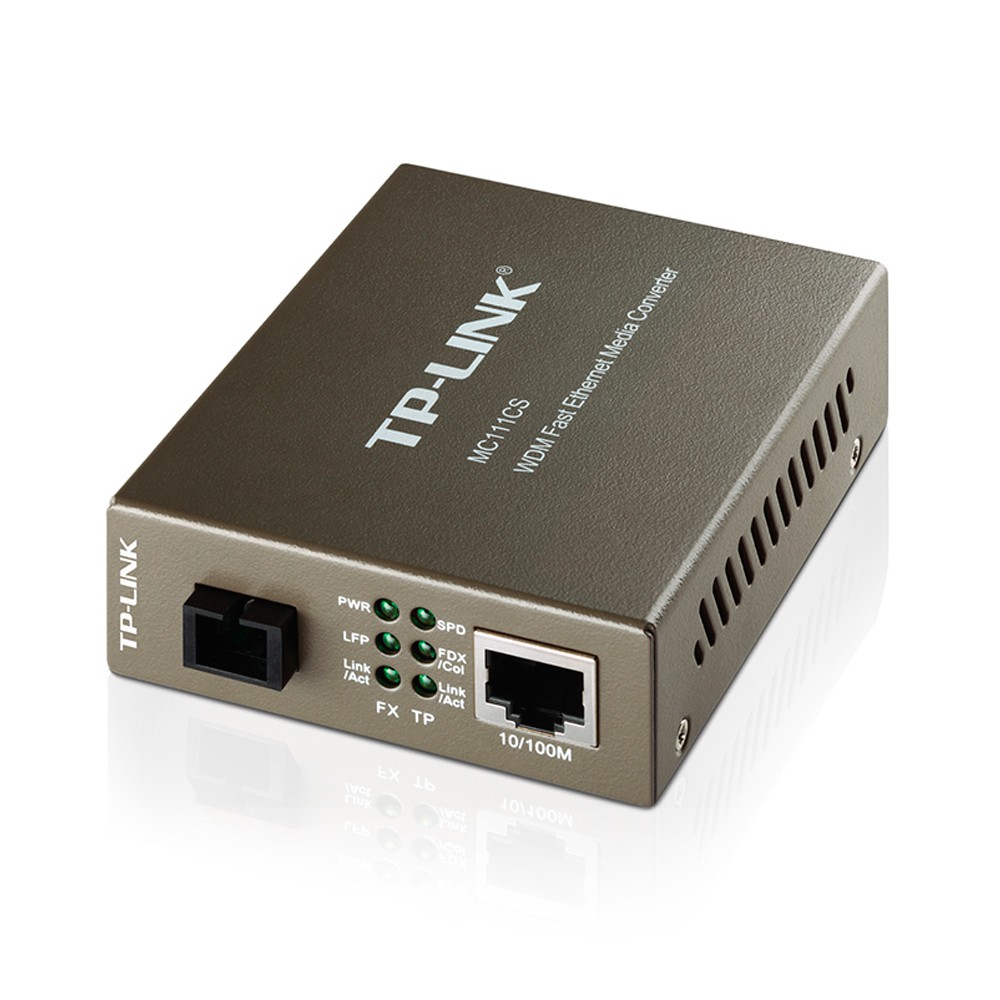

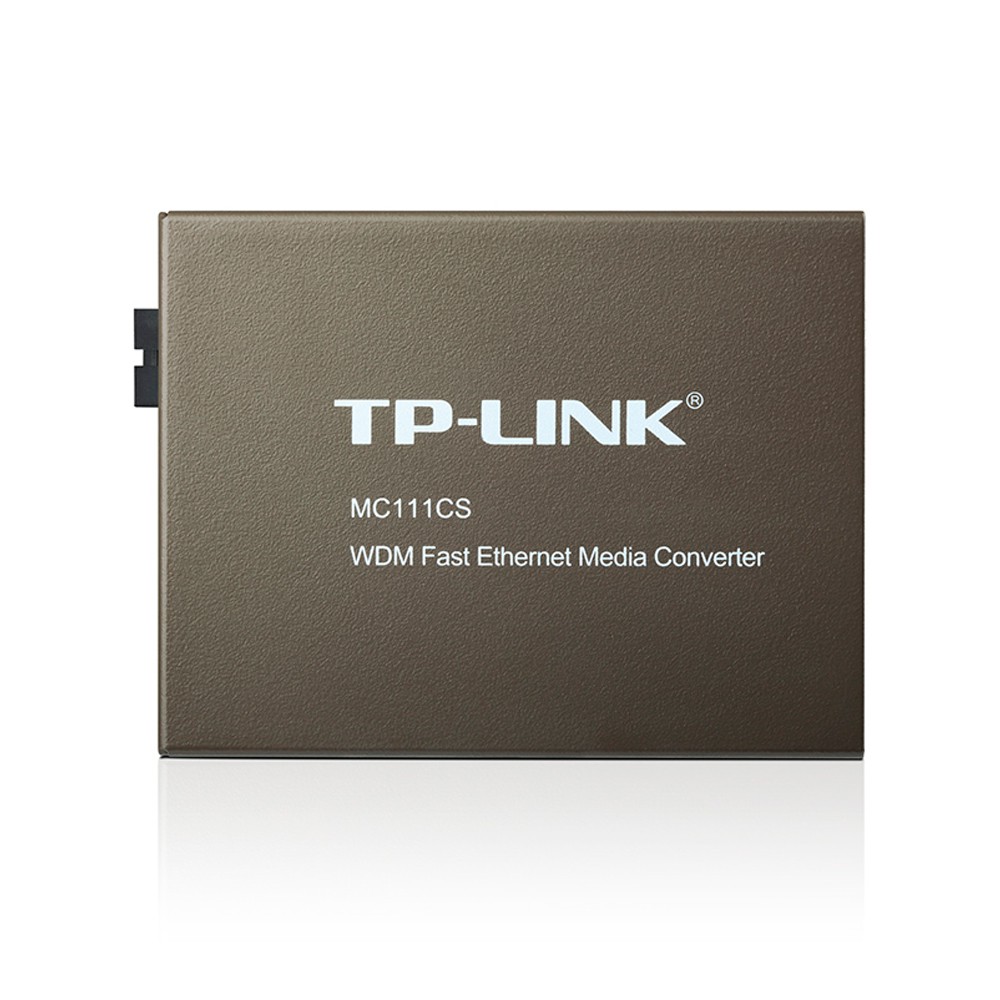

MC111CS – 10/100Mbps WDM Media Converter
In stock
Technical Data:
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|---|
| Basic Functions | Adopts WDM technology Half/Full-Duplex transfer mode for FX port Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Link Fault Forwarding and Endpoint Fault Minimize the loss caused by link failure Extends fiber distance up to 20km |
| Doors | 1 SC/UPC port 100M 1 RJ45 port 100M (Auto MDI/MDIX) |
| Wavelength | 1550nm Tx/1310nm Rx |
| WDM TX | 1550nm |
| WDM RX | 1310nm |
| Network Media 10BASE-T | UTP cable category 3, 4, 5 (max 100m) EIA/TIA-568 100Ω STP (max 100m) |
| Network Media 100BASE-T | UTP cable category 5, 5e (max 100m) EIA/TIA-568 100Ω STP (max 100m) |
| Network Media 100BASE-FX | Single mode fiber |
| LED indicators | ON, FDX/Col, Link/Active, SPD |
| Dimensions (W*L*H) | 3.7*2.9*1.1 in (94.5*73.0*27.0 mm) |

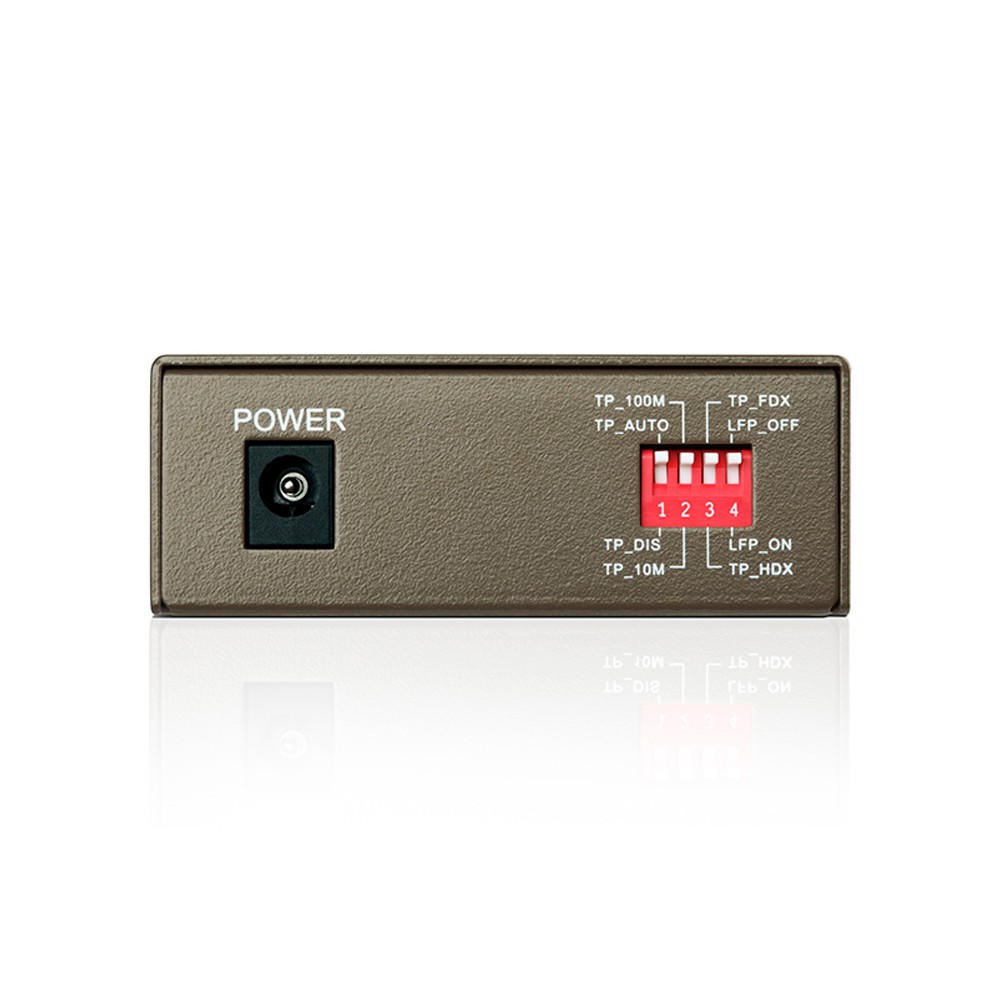

| Power Source | External Power Adapter |
| Maximum Power Consumption | 2.49W |
| Security and Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-LINK MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper cable or vice versa. Adopting WDM technology, MC111CS uses only one fiber cable to transmit and receive data, which will save you half the cabling cost. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, TP-LINK MC111CS is designed for use with single-mode fiber using SC Type connector.
The MC111CS supports longwave (LX) lasers at full wire-speed transmission rates. It operates at 1550nm for data transmission and 1310nm for data reception. Thus, the device at the other end cooperates with the MC111CS operating at 1310nm for data transmission and 1550nm for data reception. Another TP-LINK media converter, the MC112CS, is just one example of cooperation with the MC111CS.
Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link’s 19-inch chassis, Auto MDI/MDI-X for the TX port, auto-negotiation of duplex mode on the TX port, and status LEDs on the front panel. The MC111CS will transmit over single-mode fiber over distances of up to 20 km.
Main Features
– Compatible with 802.3u 10/100Base-TX, 100Base-FX standards
– Link Fault Forwarding and Edge Fault Minimize the loss caused by link failure
– Adopts WDM technology, data transmission and reception on a single fiber
