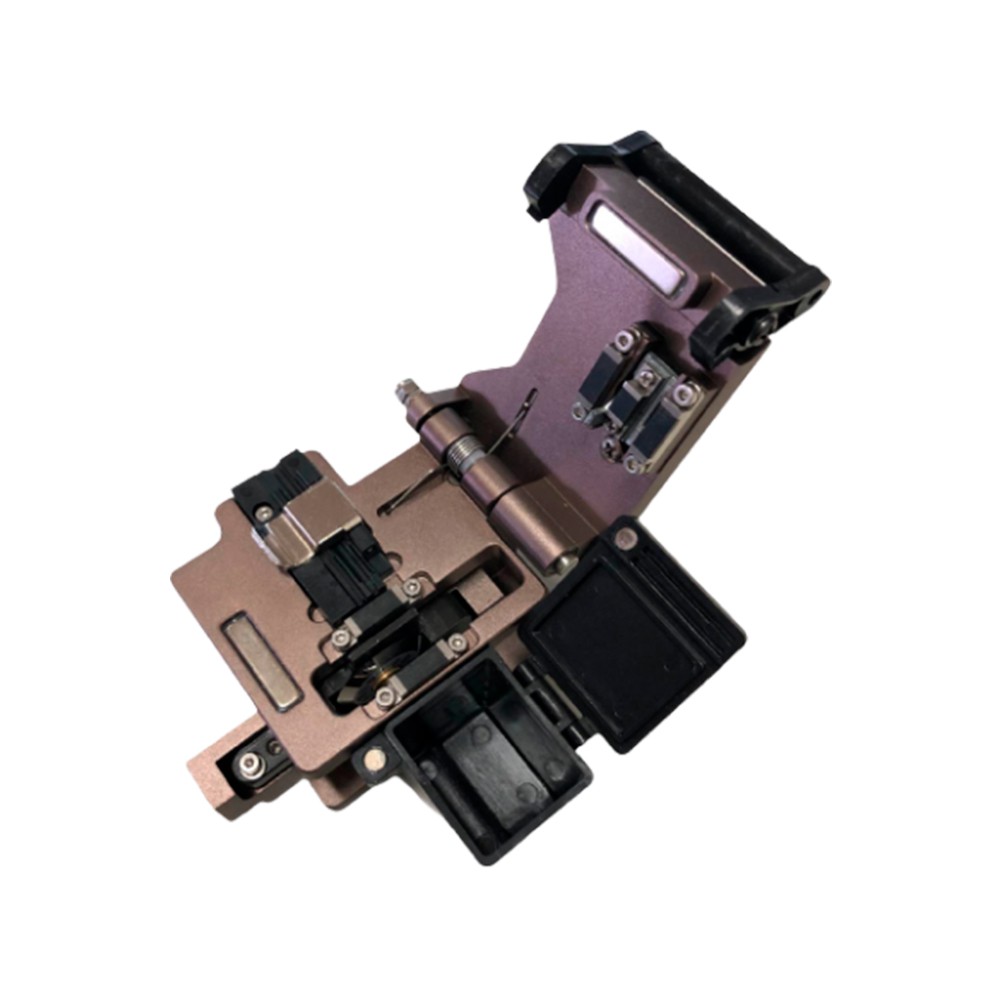

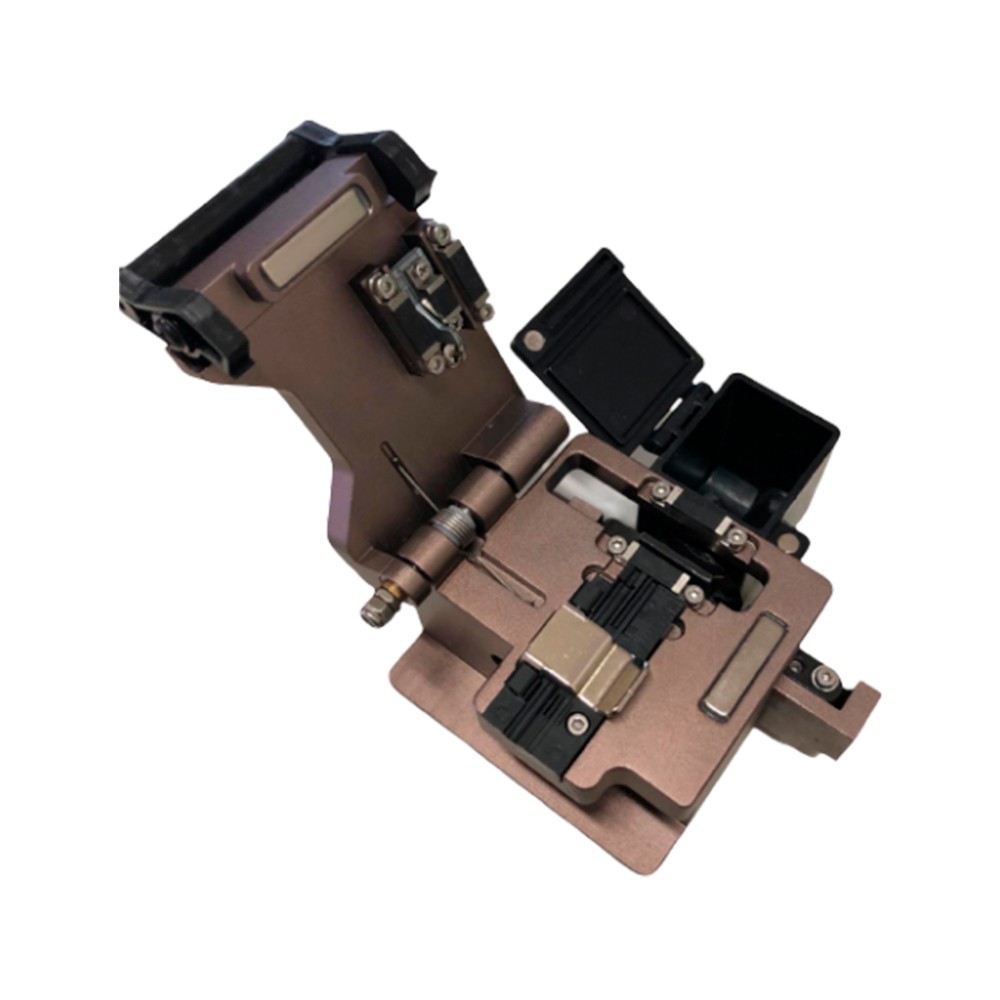

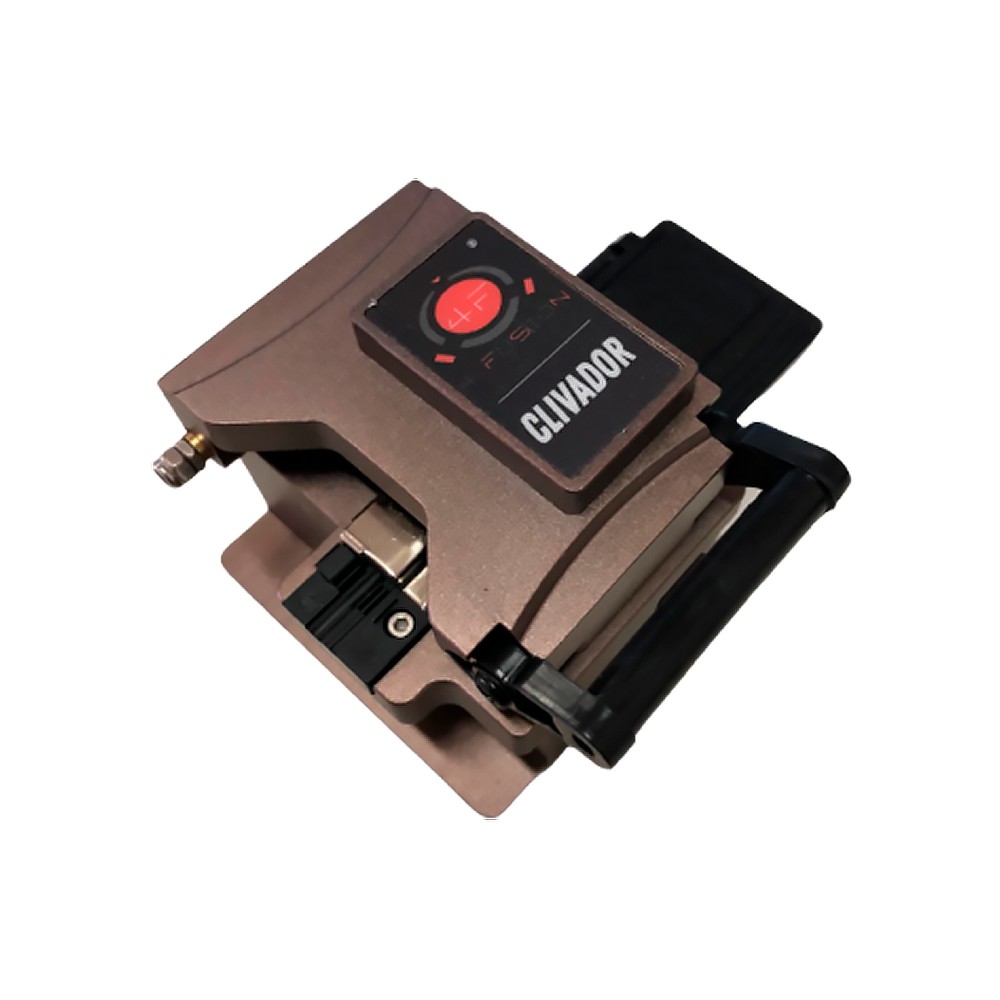

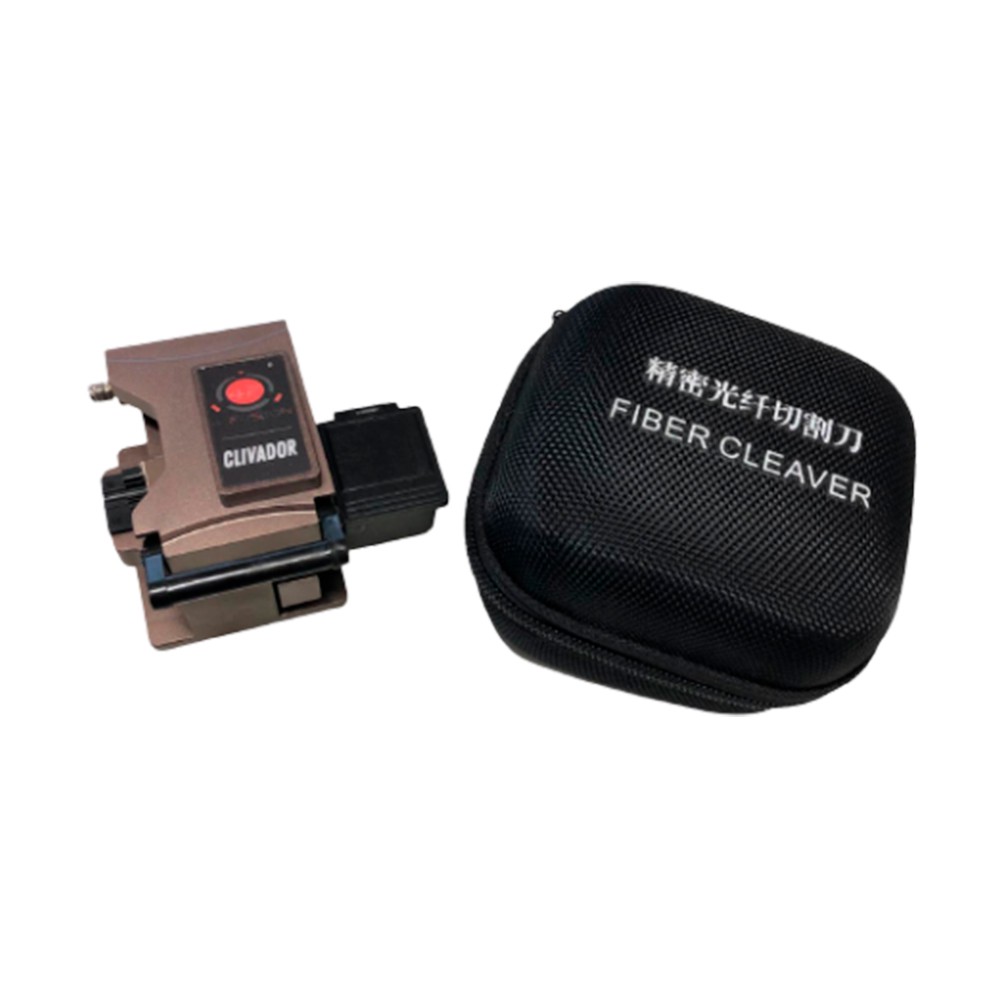

High Precision Optical Cleaver COCLV002

Technical Specifications

• Fiber diameter: 125µm
• Outer cover diameter: 0.25mm-0.9mm
• Fiber Type: Single Tube Fiber
• Cut length: 5-20mm
• Cutting angle: ≤0.5°
• Blade life: 48000
• Mode: Semi-automatic
• Fiber Collector: Available
• Dimension: 59mm(W)x55(D)mmx49mm(H)
• Weight: 280g
