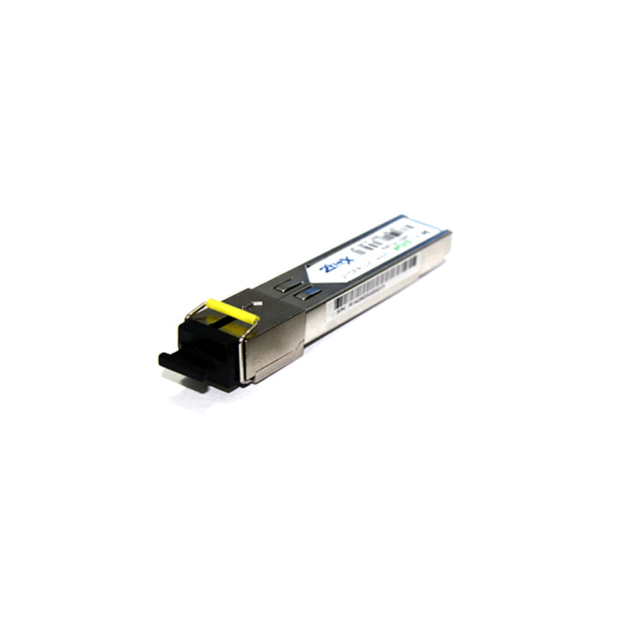

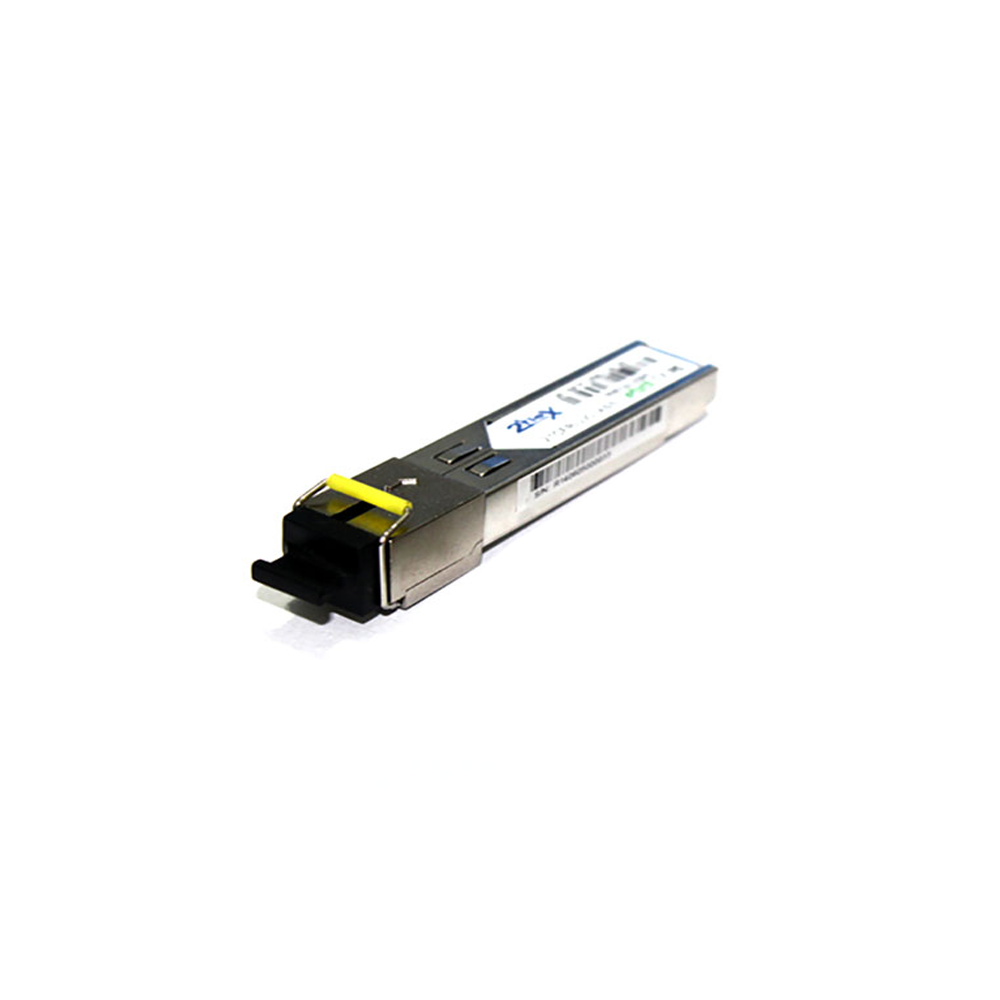

GBIC MKT – 1.25G WDM – LA20KM/LB20KM

In stock

Technical Data:

Protocol	IEEE 802.3z, CSMA/CD, TCP/IP
Wavelength	TX: 1550nm / RX: 1310nm
Power Source	3.3V
Cable	Singlemode Fiber
Fiber Type	9/125 Singlemode
Maximum range	20km
Data Rate	1.25Gbps
Door	LC and SC
Features	FCC, CE, RoHS
Temperature	Operating: 0ºC~70ºC Storage: -40ºC~80ºC
Humidity	Operating: 10%~90% Stored: 5%~90%
Dimensions	20 x 18 x 50mm

2 Flex has a line of high-quality Gbic SFP and SFP+. These devices are used in FTTx network applications, Gigabit Ethernet networks, and access networks.

Mini Gbic SFP 2 Flex is high performance for dual data rate 1.25Gbps / 1.0625Gbps and reaching 20 km transmission distance with just one fiber strand.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy Class I laser safety requirements.

The transceivers are compatible with SFP (MSA) and SFF-8472.

Main Features

– Dual data-rate 1.25Gbps/1.063Gbps;
– SC connector;
– SONET OC-24-LR-1 compliant;
– RoHS compliant;
– +3.3V Power Input;
– Operating Temperature: 0 to +70°C.
